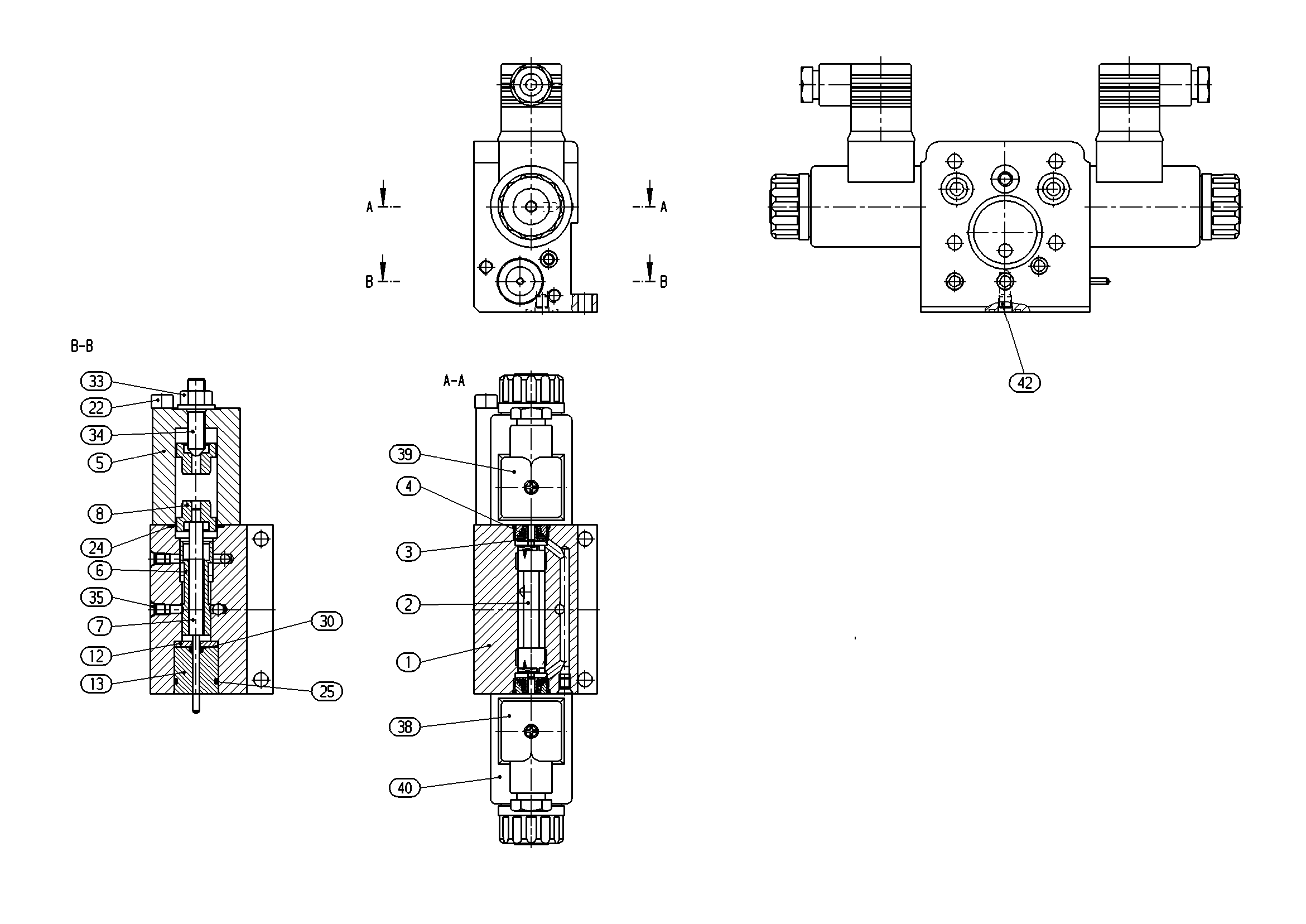

Assembly
DIRECTIONAL-CONTROL VALVER902053407
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902139478 | VALVE HOUSING | 1 | ||
| R902048187 | CONTROL PISTON | 1 | ||
| R902089670 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909445238 | SPRING HOUSING Assembly parts list →L | 1 | ||
| R909431073 | CONTROL PISTON | 1 | ||
| R909439838 | GUIDE ROD | 1 | ||
| R909650315 | SPRING DISK | 2 | ||
| R909404505 | WASHER | 1 | ||
| R909445230 | SEAL BUSHING | 1 | ||
| R909083030 | SOCKET HEAD CAP SCREW | 2 | ||
| R909086250 | O-RINGD | 1 | ||
| R909083735 | O-RINGD | 1 | ||
| R909086301 | O-RING | 1 | ||
| R909152707 | SEALING NUT | 1 | ||
| R909153555 | SETSCREW | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R902602669 | SWITCHING SOLENOID | 2 | ||
| R902600705 | PLUG | 1 |
