Assembly

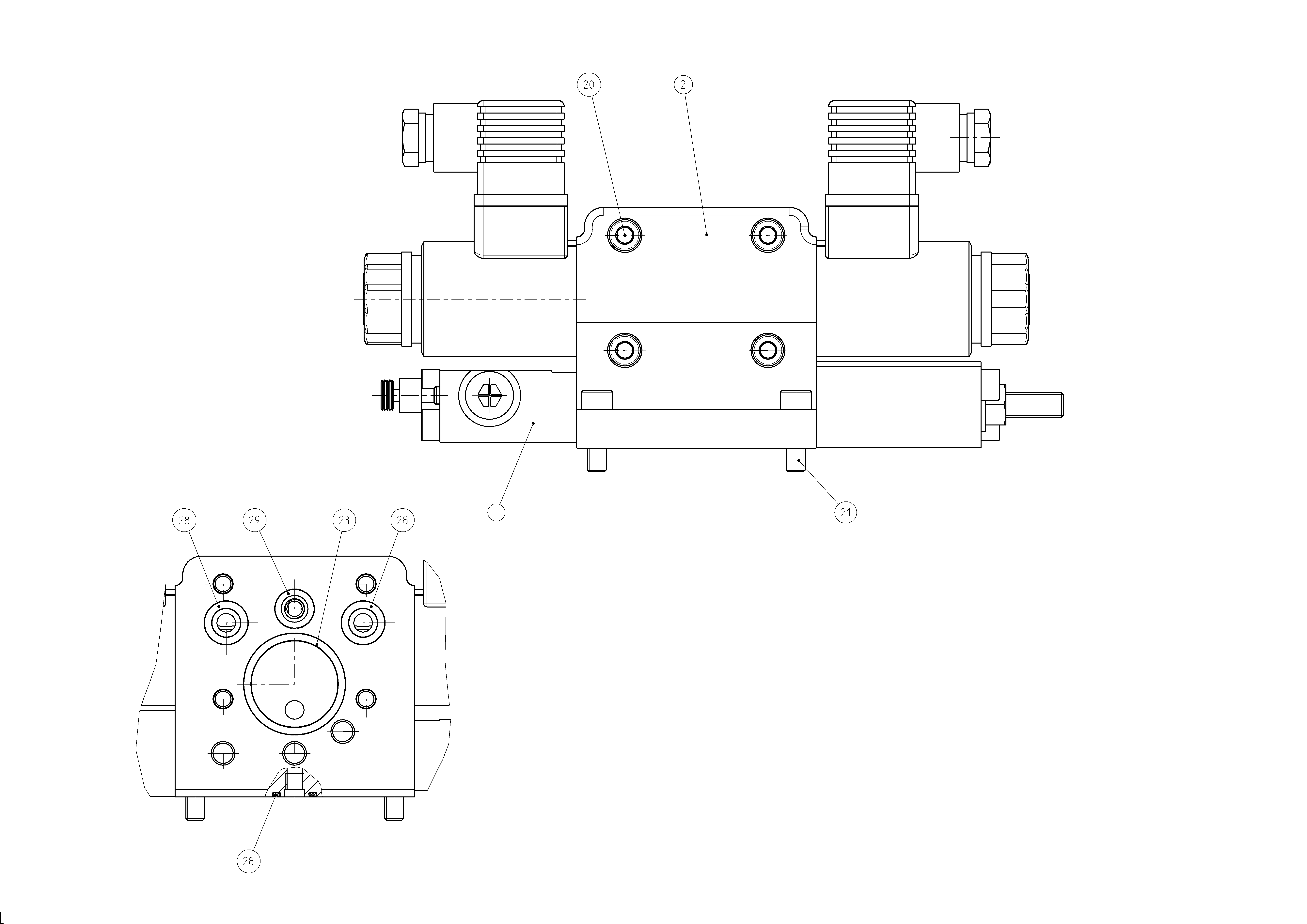

INCHING VALVER902053421
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902053358 | INCHING DEVICE Assembly parts list →L | 1 | ||
| R902053404 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600641 | O-RING | 1 | ||
| R909086332 | O-RING | 3 | ||
| R909085709 | O-RING | 1 | ||
| 98 | R902166367 | SEAL KIT | 1 |
