Assembly

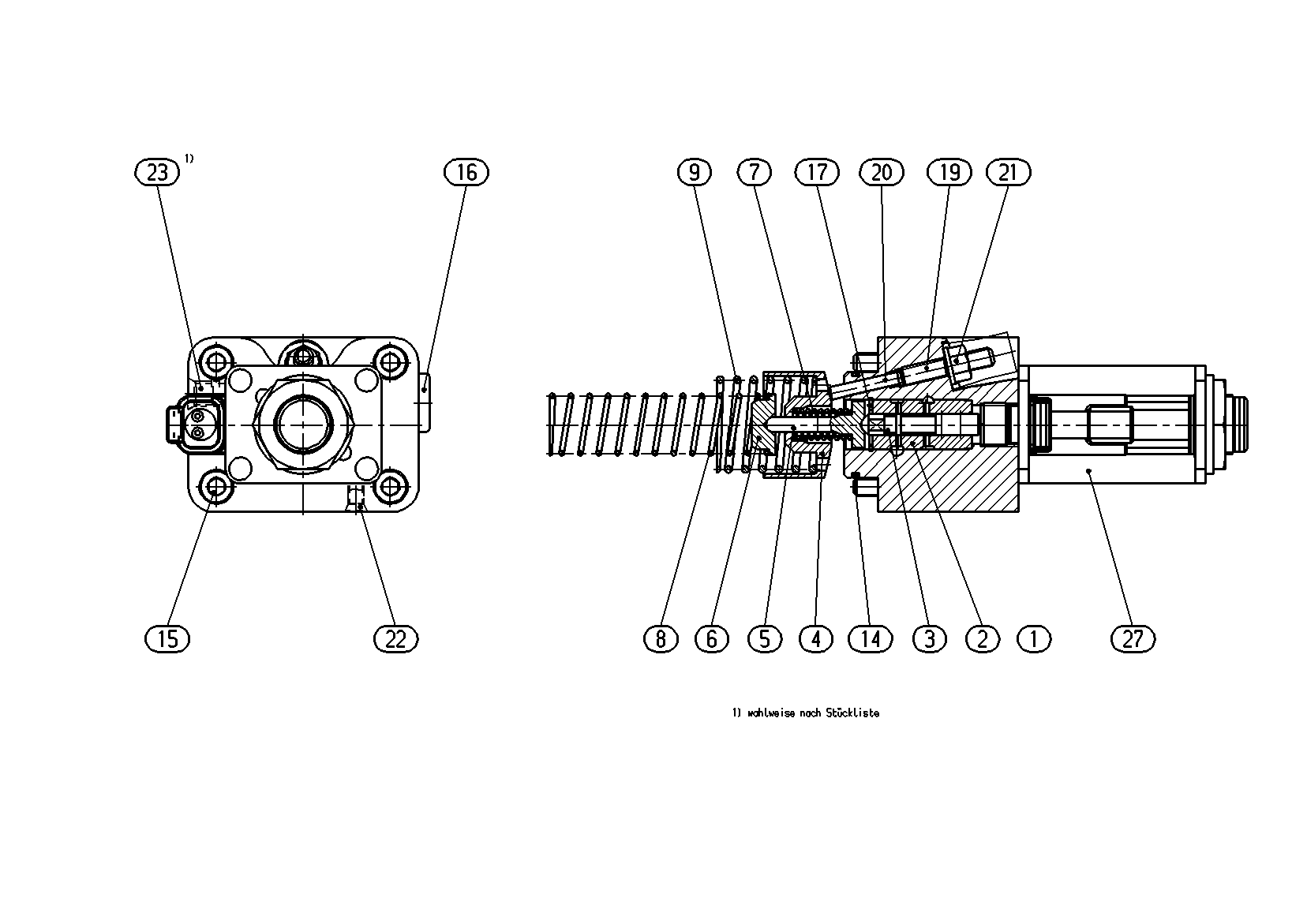

CONTROL PARTR902054768
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902149049 | CONTROL HOUSING | 1 | ||
| R909412246 | CONTROL SLEEVE | 1 | ||
| R902036776 | CONTROL PISTON | 1 | ||
| R909651118 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R902272522 | SPRING DISK | 1 | ||
| 7 | R909921421 | COMPRESSION SPRING | 1 | |
| R909436268 | COMPRESSION SPRING | 1 | ||
| 9 | R909651116 | COMPRESSION SPRING | 1 | |
| 14 | R909157562 | O-RINGD | 1 | |
| 15 | R910126446 | SOCKET HEAD CAP SCREW | 4 | |
| 16 | R913044793 | SCREW PLUGD | 1 | |
| 17 | R909083381 | RETAINING RING | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| 20 | R909087756 | STRAIGHT PIN | 1 | |
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 2 | |
| 27 | R902601847 | PROPORTIONAL SOLENOID | 1 |
