Assembly

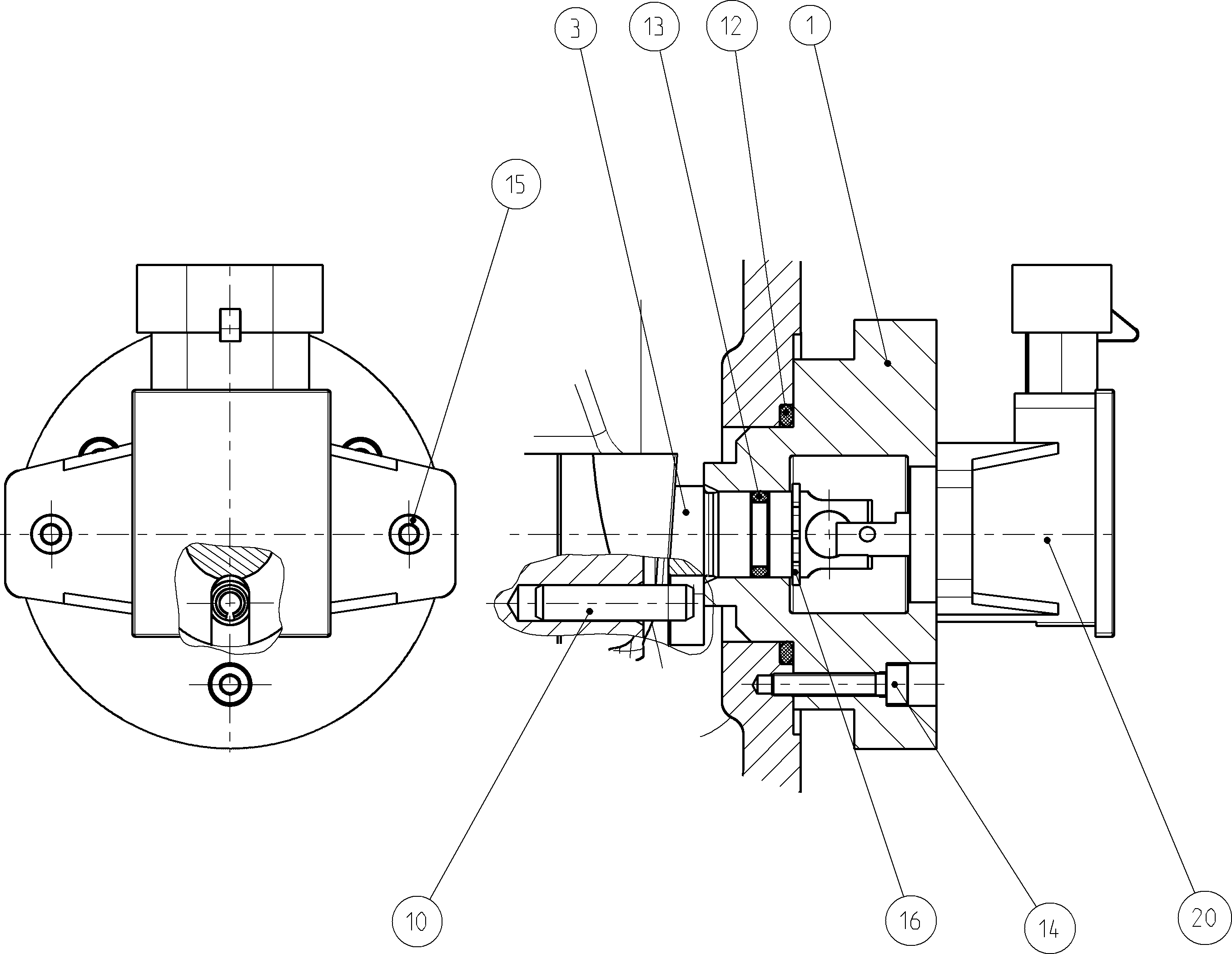

SWIVEL ANGLE SENSORR902058983
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902084612 | SENSOR HOUSING | 1 | ||
| R902084611 | SENSOR SHAFT | 1 | ||
| R902602591 | SLOTTED SPRING PIN | 1 | ||
| R909152146 | O-RING | 1 | ||
| R909083728 | O-RING | 1 | ||
| R902600771 | SOCKET HEAD CAP SCREW | 3 | ||
| R909086065 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083346 | RETAINING RING | 1 | ||
| 17 | R902601922 | WASHER | 2 | |
| R902601927 | ROT. ANGLE SENSOR | 1 |
