Assembly

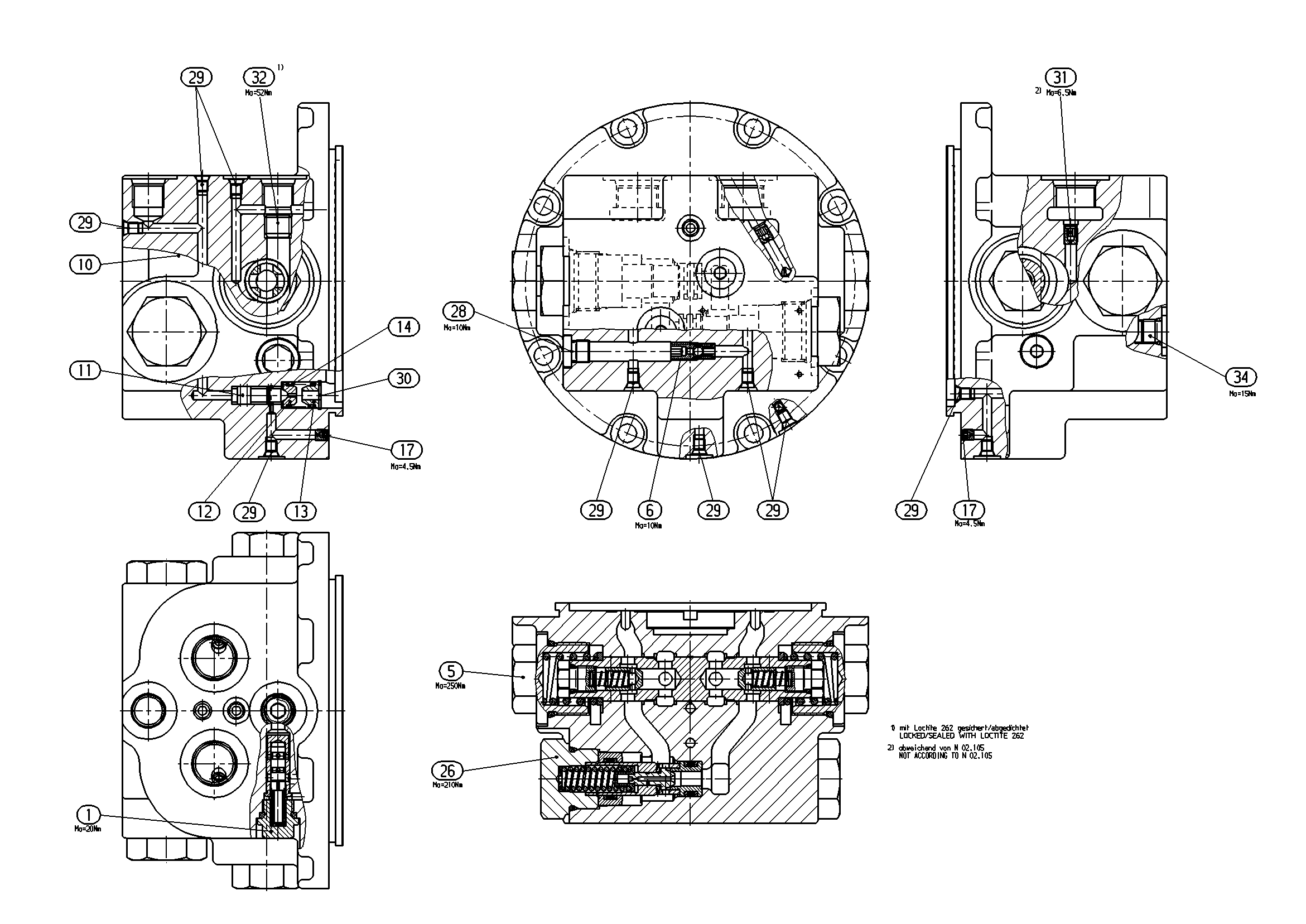

CONNECTION PLATER902062254
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902029700 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| R902025868 | BRAKE PISTON Assembly parts list →L | 1 | ||
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902062256 | CONNECTION PLATE | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R902020365 | SPRING DISK | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R902020331 | NOZZLE | 2 | ||
| R930000415 | SPARE PART | 2 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083379 | RETAINING RING | 1 | ||
| R909156492 | NOZZLE | 2 | ||
| R909153976 | SETSCREW | 1 | ||
| R910764647 | SCREW PLUG | 2 |
