Assembly

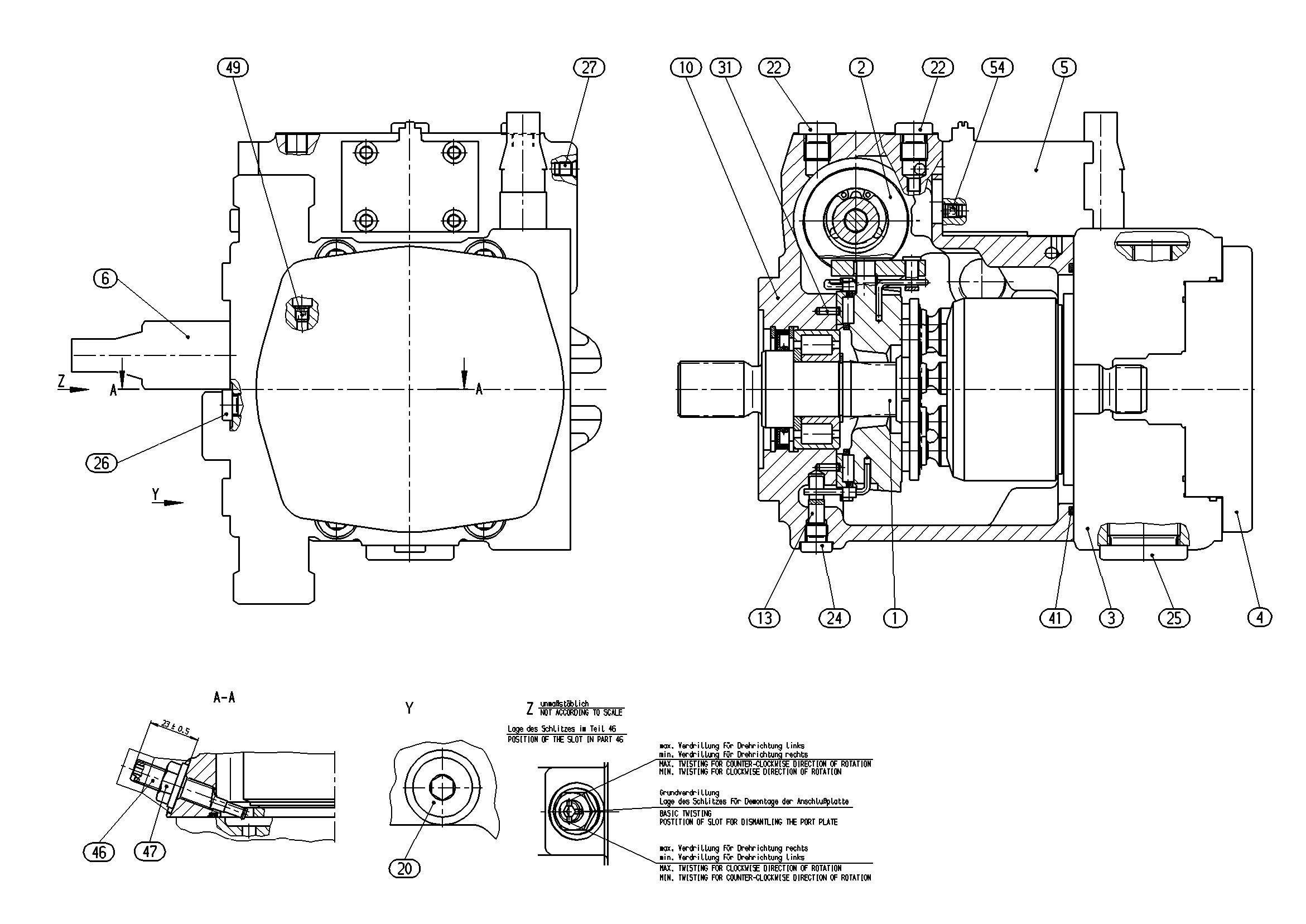

AXIAL-PISTON PUMPR902062499
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902102118 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902136635 | CONTROL Assembly parts list →L | 1 | ||
| R902071017 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902246738 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902044981 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909416388 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902062496 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909086547 | O-RINGD | 1 | ||
| R902039583 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156496 | NOZZLE | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| 98 | R902095560 | SEAL KIT | 1 |
