Assembly

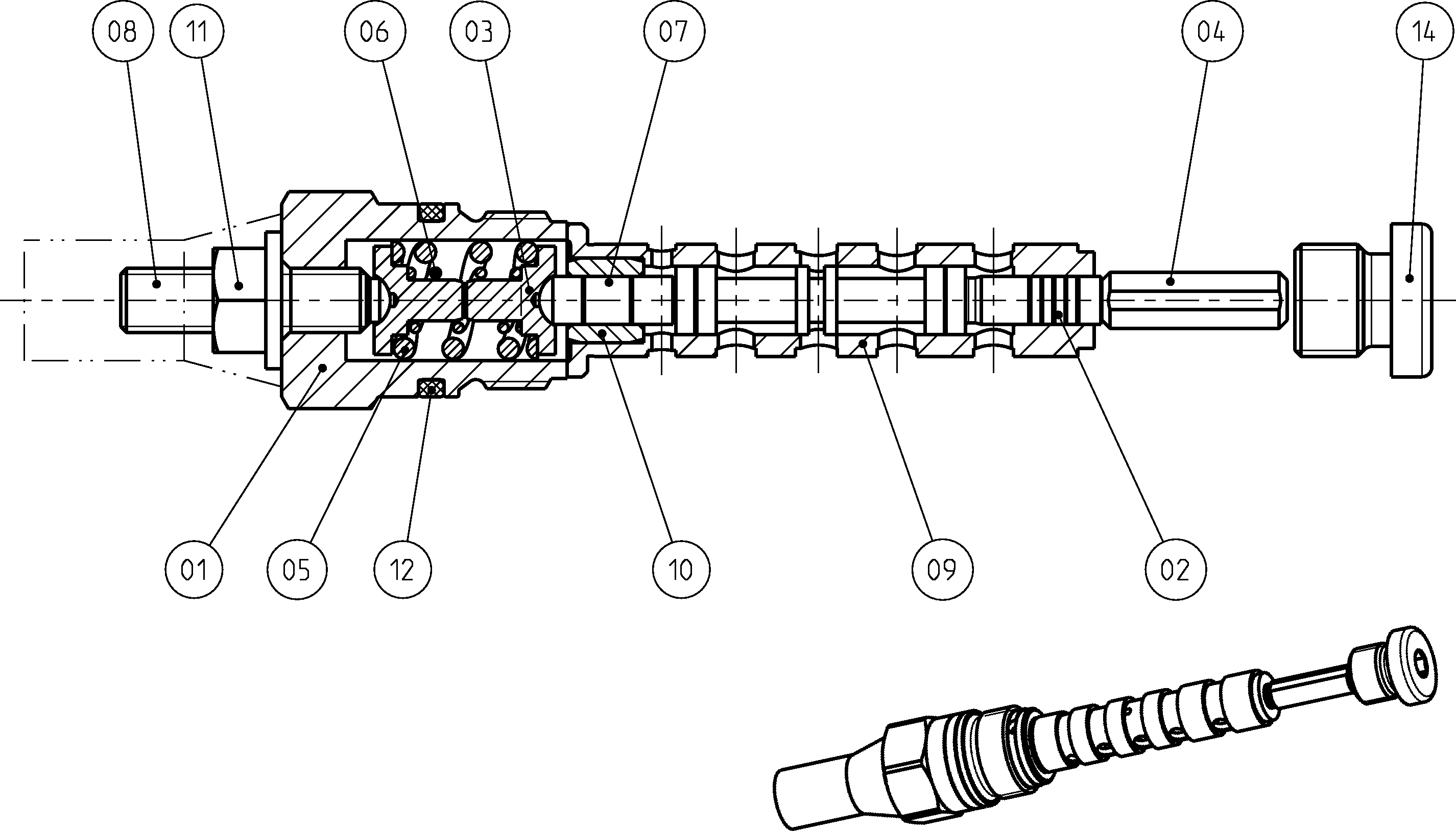

CONTROL ELEMENTR902062620
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902033700 | SCREW PLUG | 1 | ||
| 2 | R902059023 | CONTROL PISTON | 1 | |
| 3 | R909436839 | SPRING BOLT | 2 | |
| R902046431 | CONTROL PISTON | 1 | ||
| 5 | R909436394 | COMPRESSION SPRING | 1 | |
| 6 | R902017140 | COMPRESSION SPRING | 1 | |
| R902059025 | PISTON | 1 | ||
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R902059024 | CONTROL SLEEVE | 1 | |
| R902059026 | BUSHING | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RING | 1 | ||
| R909153930 | SCREW PLUG | 1 |
