Assembly

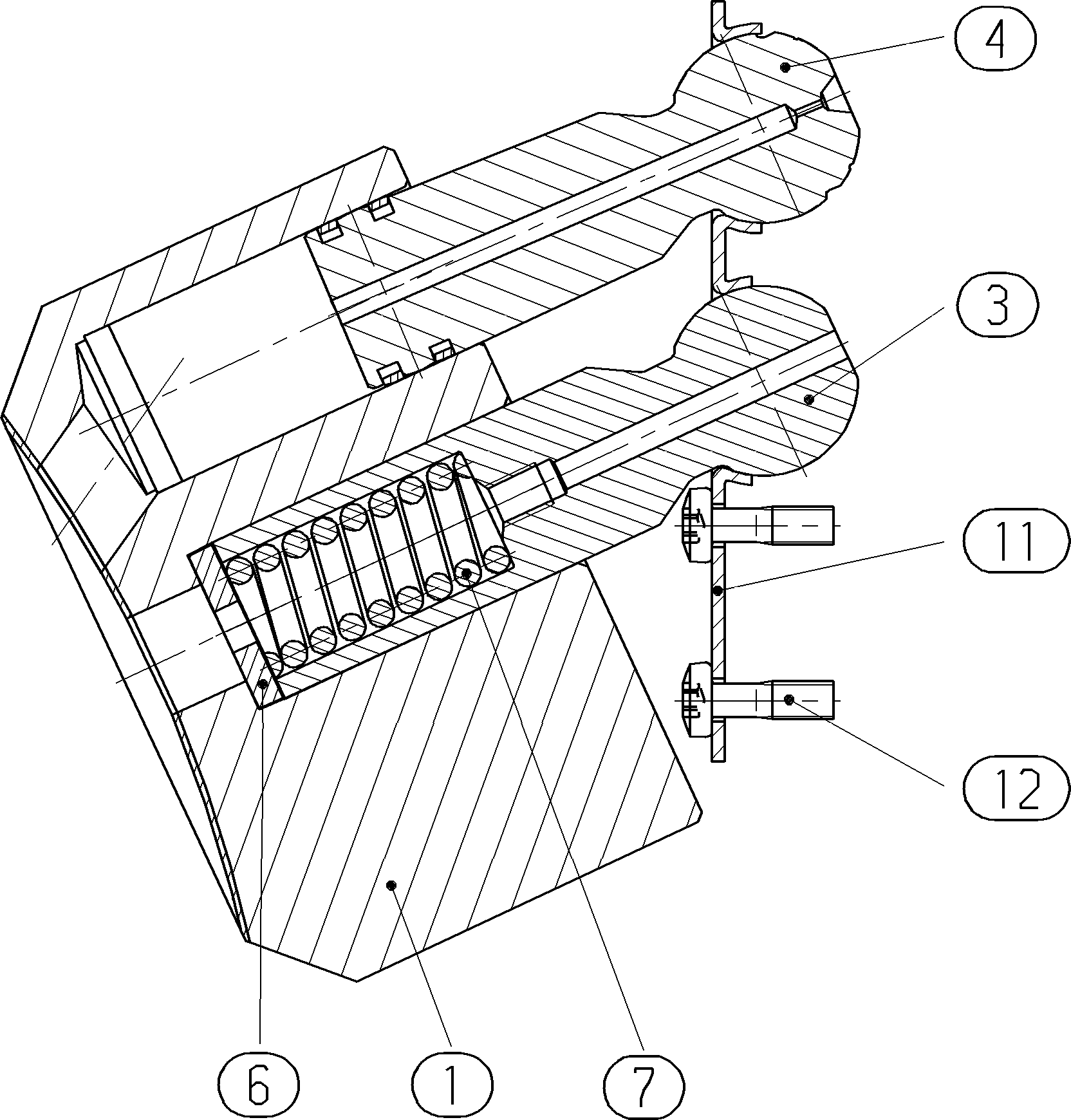

ROTARY GROUPR902063930
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902162452 | CYLINDER | 1 | ||
| R909921845 | CENTER PIN | 1 | ||
| R902021900 | PISTON | 7 | ||
| R902063924 | ADJUSTMENT SHIM | 1 | ||
| R902063925 | ADJUSTMENT SHIM | 1 | ||
| R902063926 | ADJUSTMENT SHIM | 1 | ||
| R902063927 | ADJUSTMENT SHIM | 1 | ||
| R902063928 | ADJUSTMENT SHIM | 1 | ||
| R902063929 | ADJUSTMENT SHIM | 1 | ||
| R909921846 | COMPRESSION SPRING | 1 | ||
| R902072550 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 7 |
