Assembly

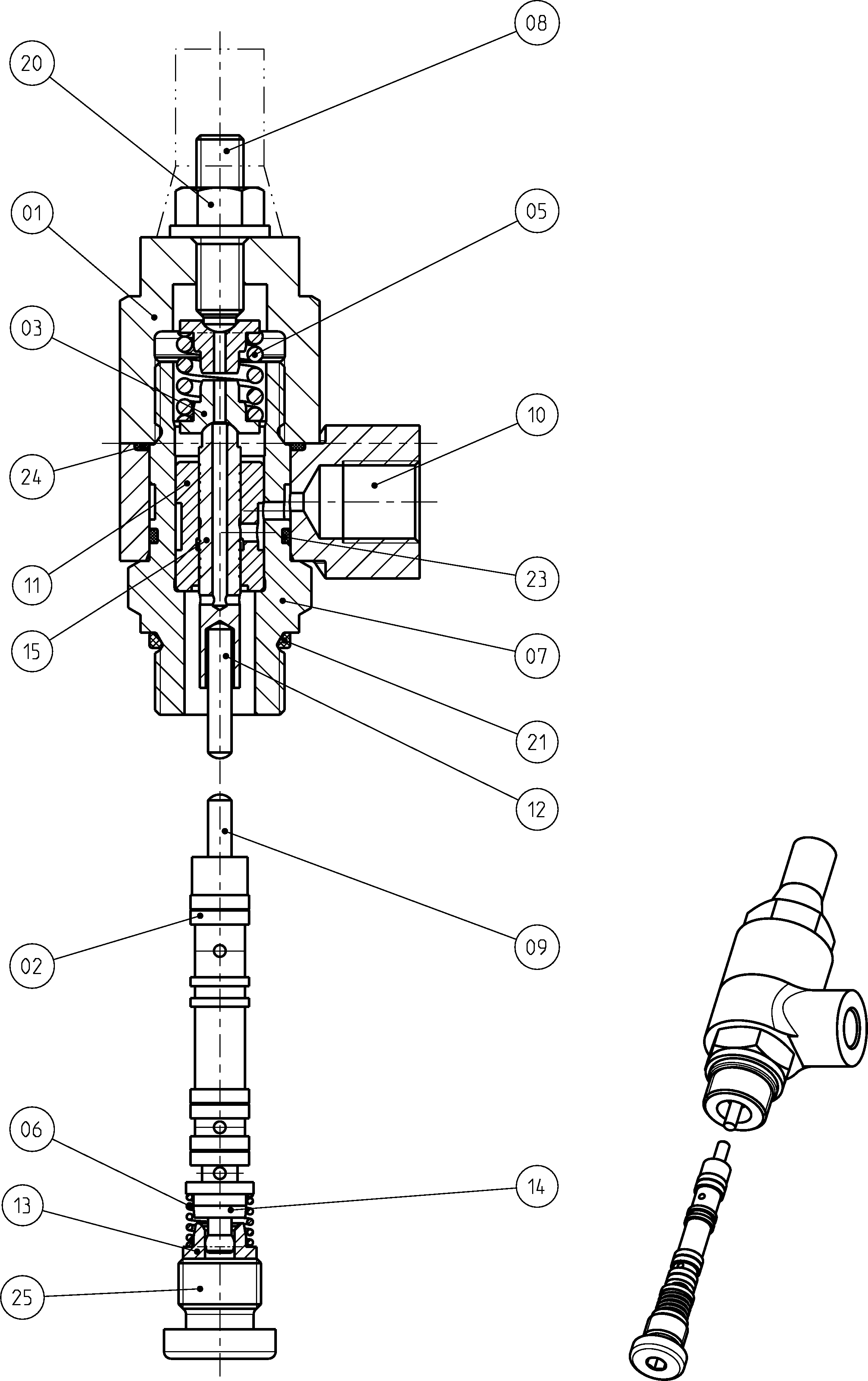

CONTROL ELEMENTR902064346
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909921375 | SCREW PLUG | 1 | ||
| 2 | R902022771 | CONTROL PISTON | 1 | |
| 3 | R909436991 | SPRING BOLT | 4 | |
| R909443278 | COMPRESSION SPRING | 1 | ||
| 6 | R909436459 | COMPRESSION SPRING | 1 | |
| 7 | R909921372 | THREADED PART | 1 | |
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R902237857 | BOLT | 1 | |
| R909444948 | CONNECTING PIECE | 1 | ||
| R902017410 | CONTROL SLEEVE | 1 | ||
| R909921376 | BOLT | 1 | ||
| R902213895 | SPRING DISK | 1 | ||
| R902213897 | SPRING BOLT | 1 | ||
| R902017409 | CONTROL PISTON | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909086520 | O-RINGD | 1 | ||
| R909151979 | SCREW PLUG | 1 |
