Assembly

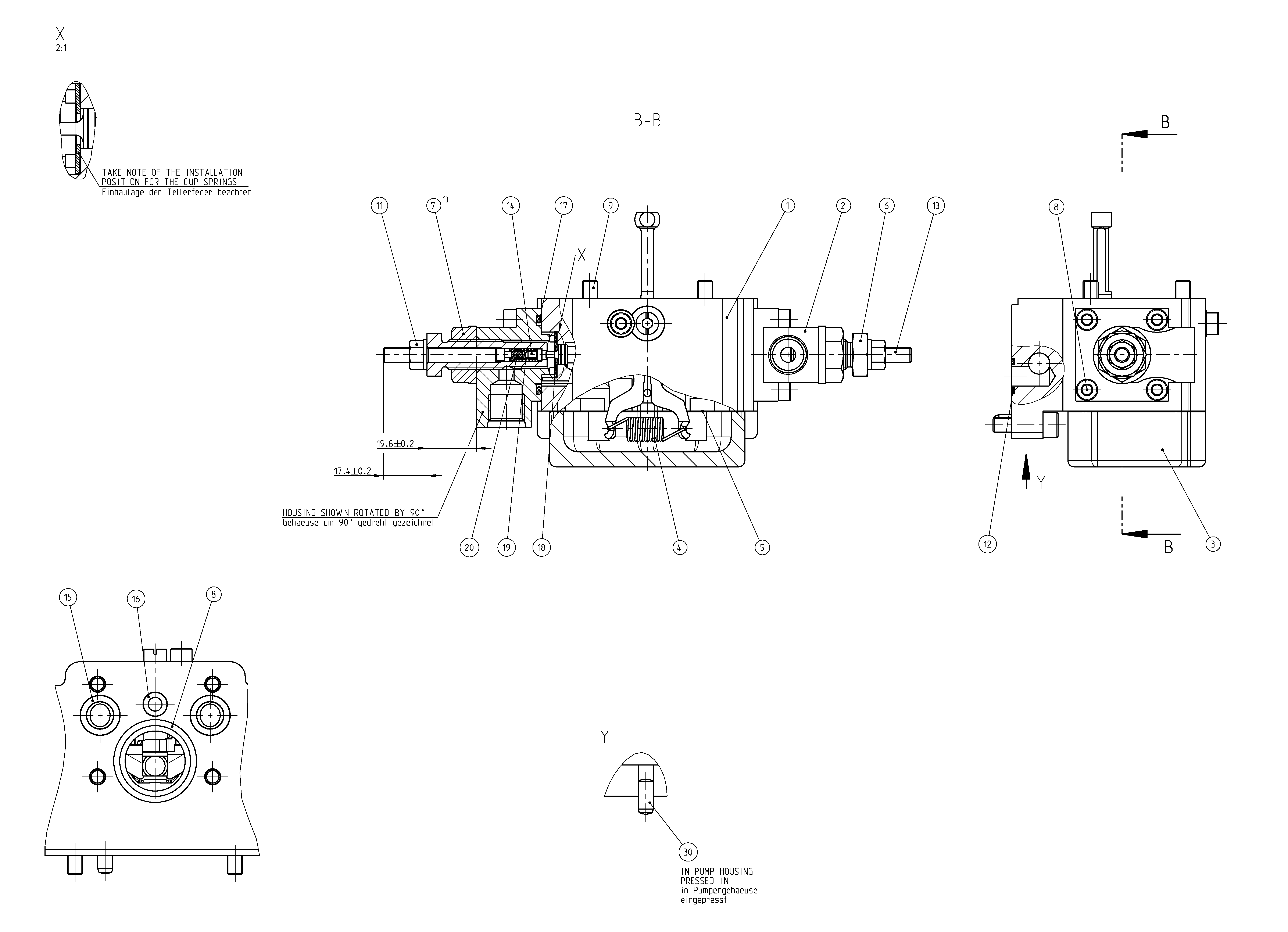

CONTROL MODULER902064403
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902066666 | BASIC UNIT Assembly parts list →L | 1 | ||
| R902061634 | HOUSING | 2 | ||
| R909443201 | COVER | 1 | ||
| R902064153 | EXTENSION SPRING | 1 | ||
| R909651478 | SEALD | 1 | ||
| R902053238 | ADJUSTING SCREW | 2 | ||
| R909087405 | SEALING NUT | 2 | ||
| R909083010 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 10 | R902600641 | O-RINGD | 1 | |
| R909152425 | SEALING NUT | 2 | ||
| R909086178 | O-RINGD | 3 | ||
| R902053239 | SETSCREW | 2 | ||
| R902053237 | SPRING DISK | 2 | ||
| R909086333 | O-RING | 2 | ||
| R909086380 | O-RINGD | 1 | ||
| R909083764 | O-RING | 2 | ||
| R902601640 | DISC SPRING | 2 | ||
| R909443395 | COMPRESSION SPRING | 2 | ||
| R909443400 | SPRING DISK | 2 | ||
| R913009677 | STRAIGHT PIN | 1 |
