Assembly

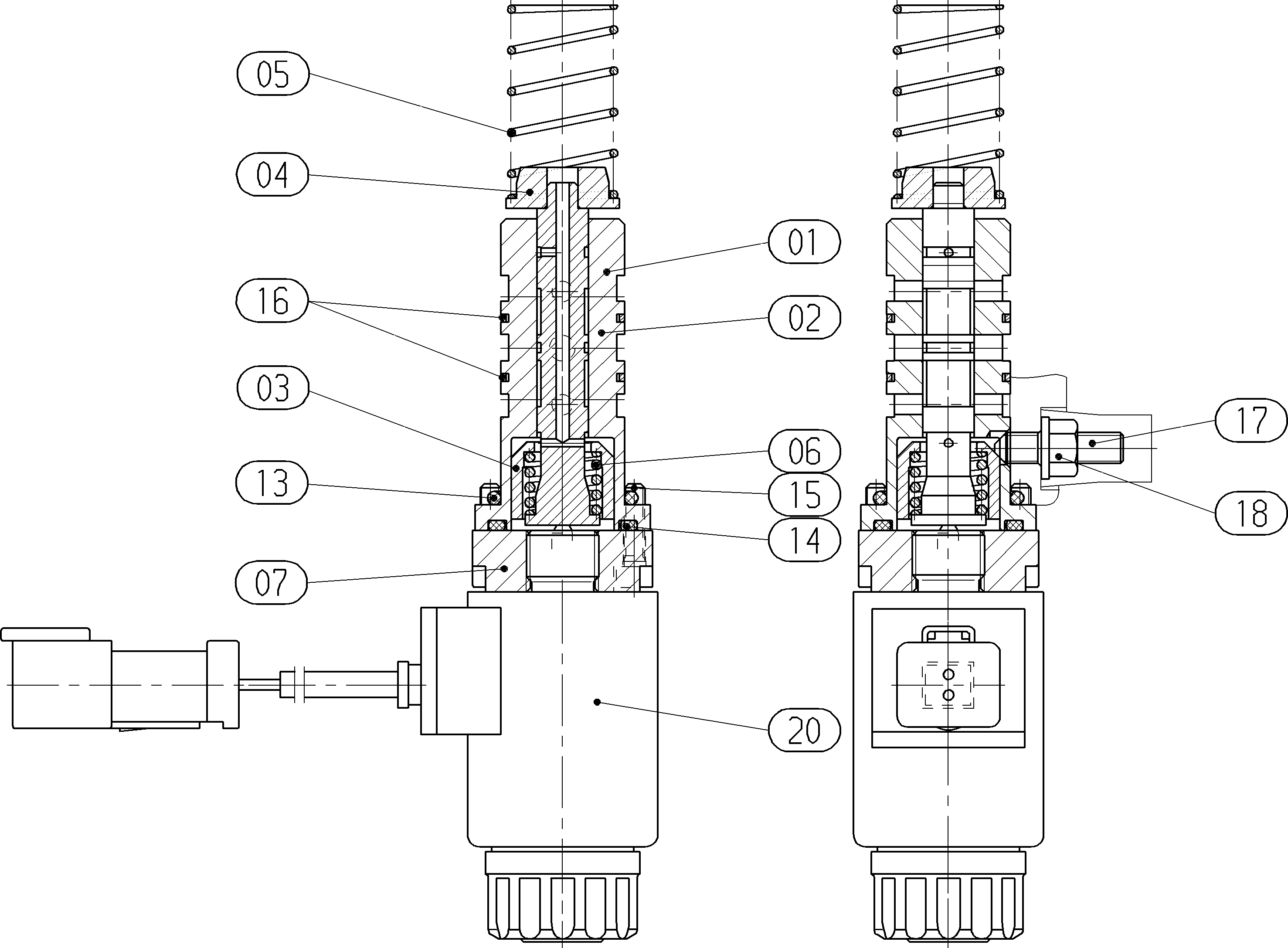

CONTROL ELEMENTR902066140
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902064447 | CONTROL SLEEVE | 1 | |
| 2 | R902105207 | CONTROL PISTON | 1 | |
| 3 | R902005735 | ADJUSTING BUSHING | 1 | |
| 4 | R909443280 | SPRING DISK | 1 | |
| 5 | R909440876 | COMPRESSION SPRING | 1 | |
| 6 | R909449773 | COMPRESSION SPRING | 1 | |
| 7 | R902055741 | INTERMEDIATE PIECE | 1 | |
| R909083763 | O-RING | 1 | ||
| R909083761 | O-RING | 1 | ||
| R909083004 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601678 | STEEL SEALING RING | 2 | ||
| R909153284 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R902603429 | PROPORTIONAL SOLENOID | 1 |
