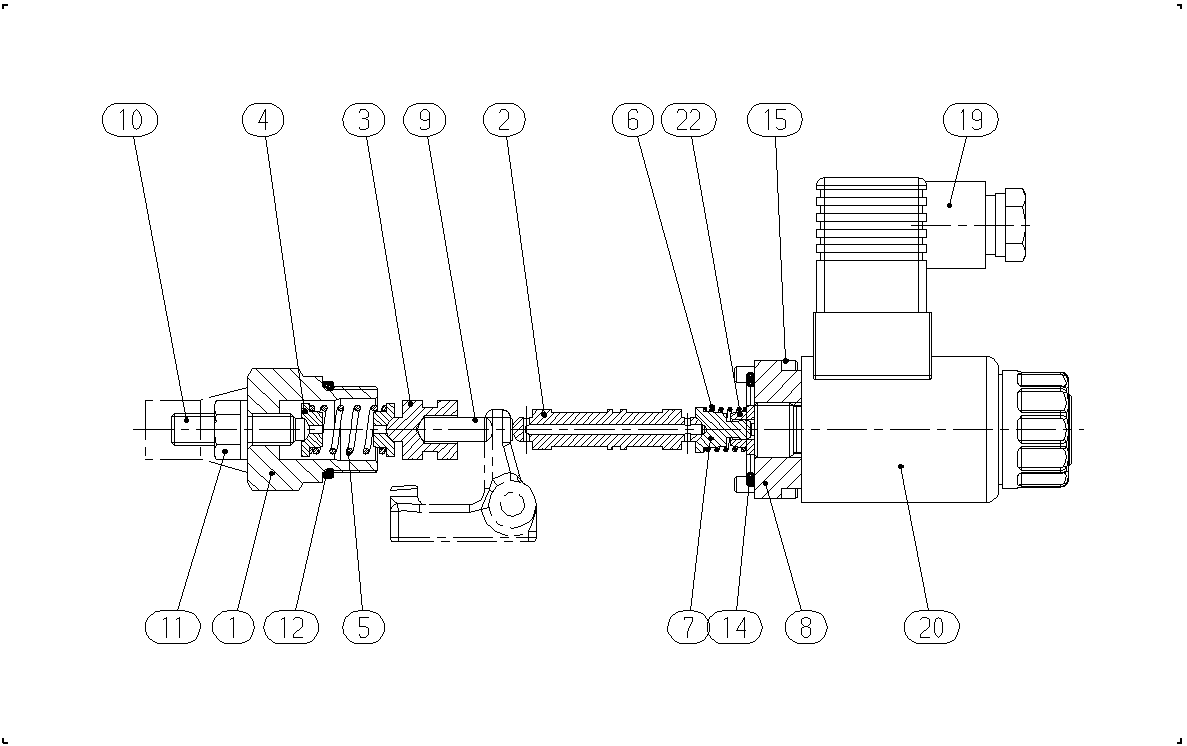

Assembly
CONTROL ELEMENTR902066621
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909444161 | SCREW PLUG | 1 | ||
| R909432439 | CONTROL PISTON | 1 | ||
| R902025067 | PISTON | 1 | ||
| R902066558 | SPRING BOLT | 2 | ||
| R902005694 | COMPRESSION SPRING | 1 | ||
| R909436459 | COMPRESSION SPRING | 1 | ||
| R902213896 | SPRING BOLT | 1 | ||
| R902055741 | INTERMEDIATE PIECE | 1 | ||
| R902030195 | BOLT | 1 | ||
| R909440424 | SETSCREW | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909154235 | O-RING | 1 | ||
| R909152694 | O-RING | 1 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 4 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R902603434 | PROPORTIONAL SOLENOID | 1 | ||
| R902213895 | SPRING DISK | 1 |
