Assembly

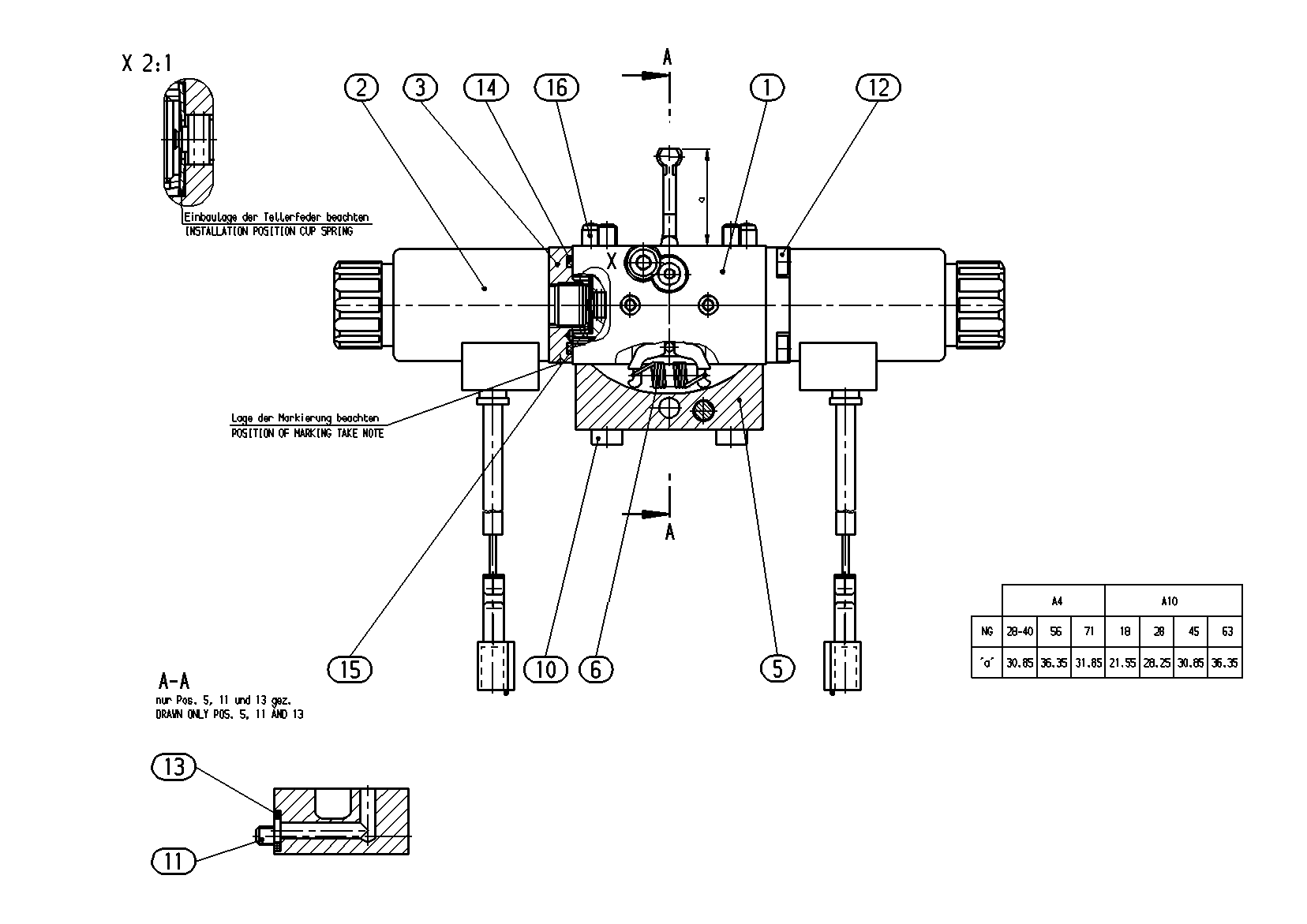

CONTROL MODULER902066757
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902046781 | BASIC UNIT Assembly parts list →L | 1 | ||
| R902602687 | DUMMY | 2 | ||
| R902046037 | LOCATION PIECE | 2 | ||
| R902046034 | CONNECTION COVER | 1 | ||
| R902066753 | EXTENSION SPRING | 1 | ||
| R902602066 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601916 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| R902600655 | O-RINGD | 1 | ||
| R909083764 | O-RING | 2 | ||
| R902601640 | DISC SPRINGD | 2 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| 98 | R902002395 | SEAL KIT | 1 |
