Assembly

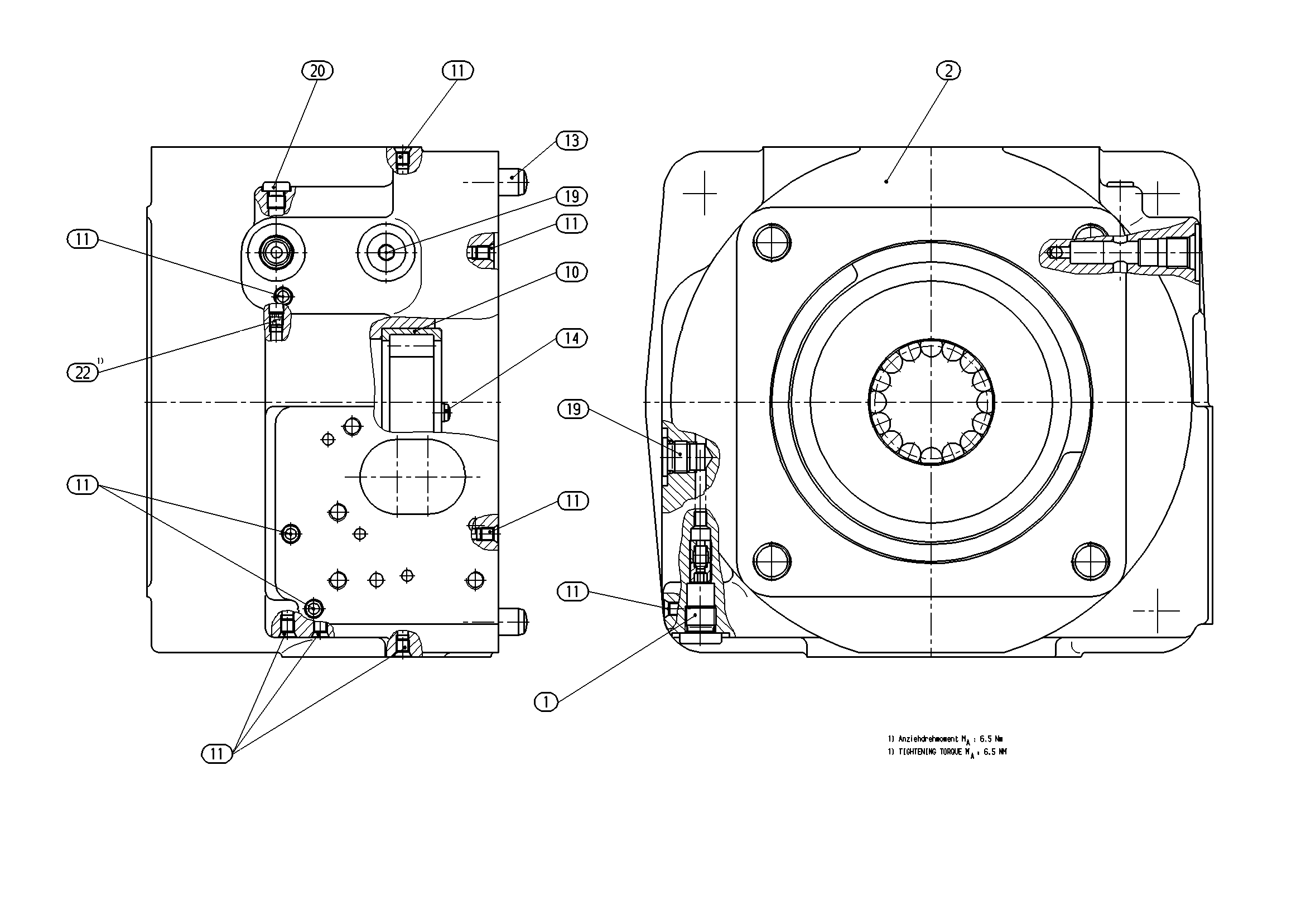

CONNECTION PLATE, RLR902066832
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902057656 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902229680 | CONNECTION PLATE, RL | 1 | ||
| R909156745 | CYL. ROLLER BEARING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R913009673 | STRAIGHT PIN | 2 | ||
| R909830529 | STRAIGHT PIN | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| 98 | R902002468 | SEAL KIT | 1 |
