Assembly

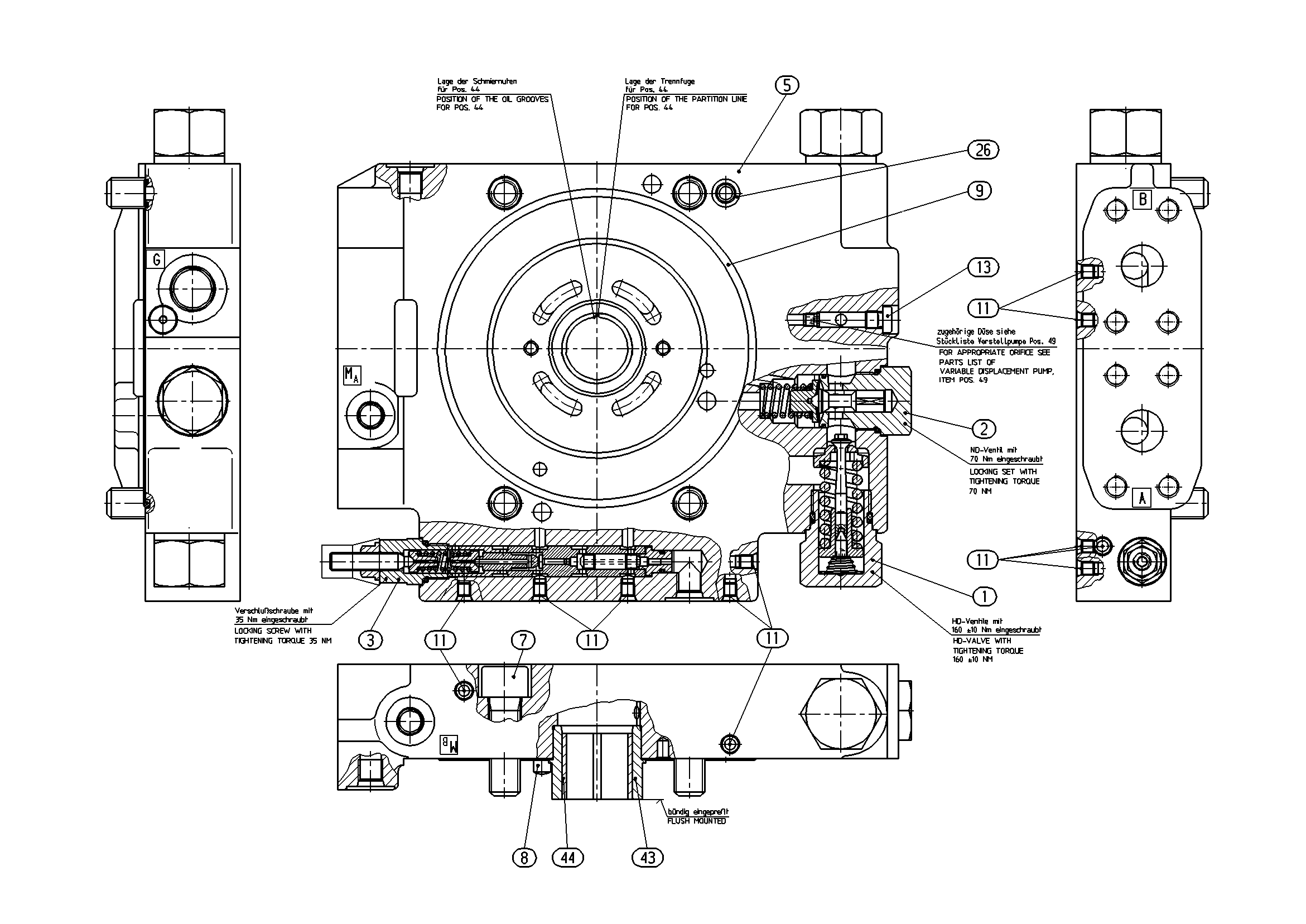

CONNECTION PLATER902066905
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016386 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902051329 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902069187 | PRESSURE CUT-OFF VALVE Assembly parts list →L | 1 | ||
| R902039883 | CONNECTION PLATE | 1 | ||
| R909156851 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084173 | STRAIGHT PIN | 2 | ||
| R909830424 | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R902001050 | BUSHING | 1 | ||
| R902260549 | BUSHING | 1 |
