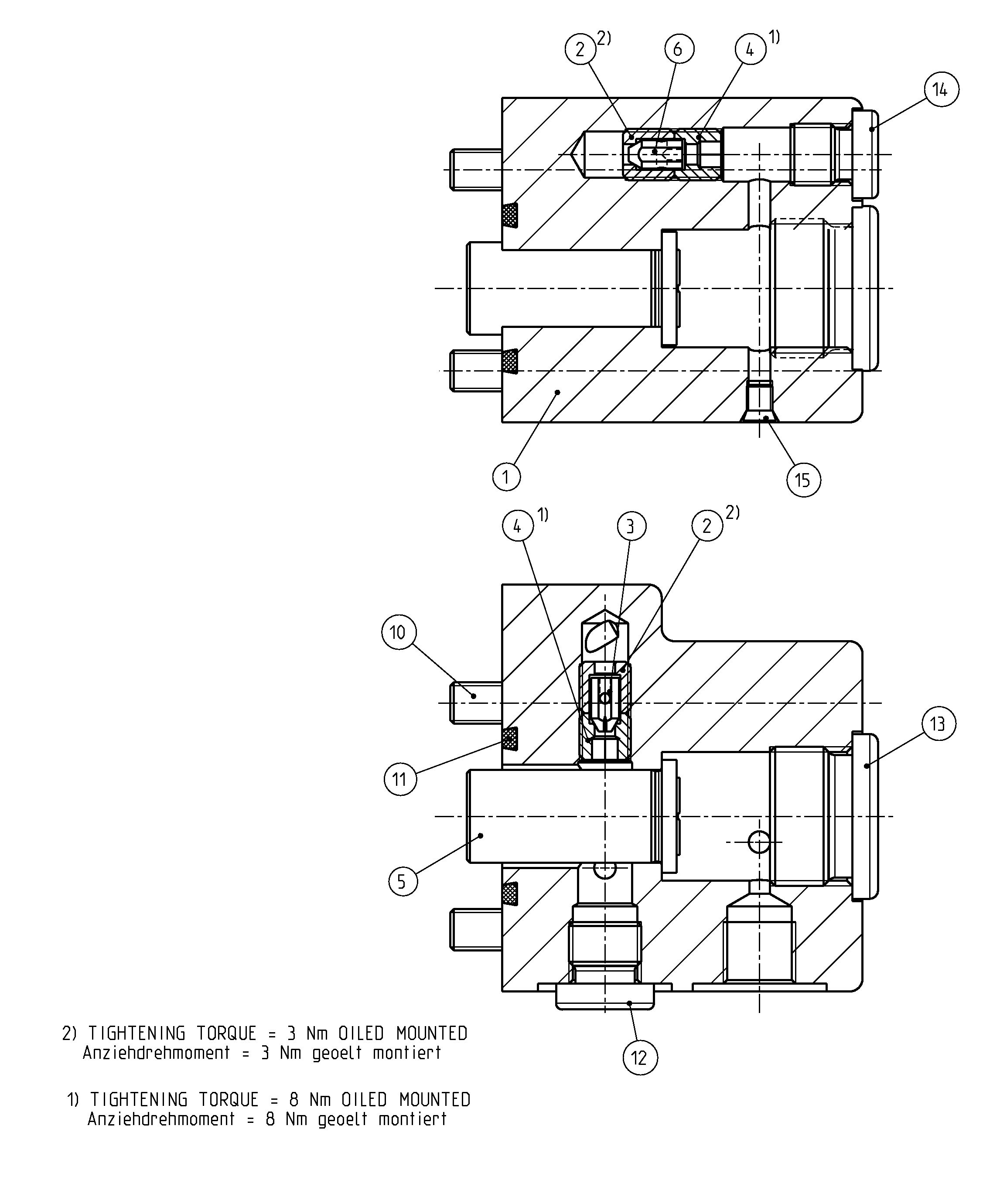

Assembly
STROKE LIMITERR902067675
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902068946 | HOUSING | 1 | ||
| R909400263 | THROTTLE SCREW | 2 | ||
| R909446625 | THROTTLE PIN Assembly parts list →L | 1 | ||
| R909400264 | THROTTLE SCREW | 2 | ||
| R902070867 | PISTON | 1 | ||
| R909439287 | VALVE PIN | 1 | ||
| R909156995 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151882 | O-RINGD | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R909156650 | SCREW PLUGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
