Assembly

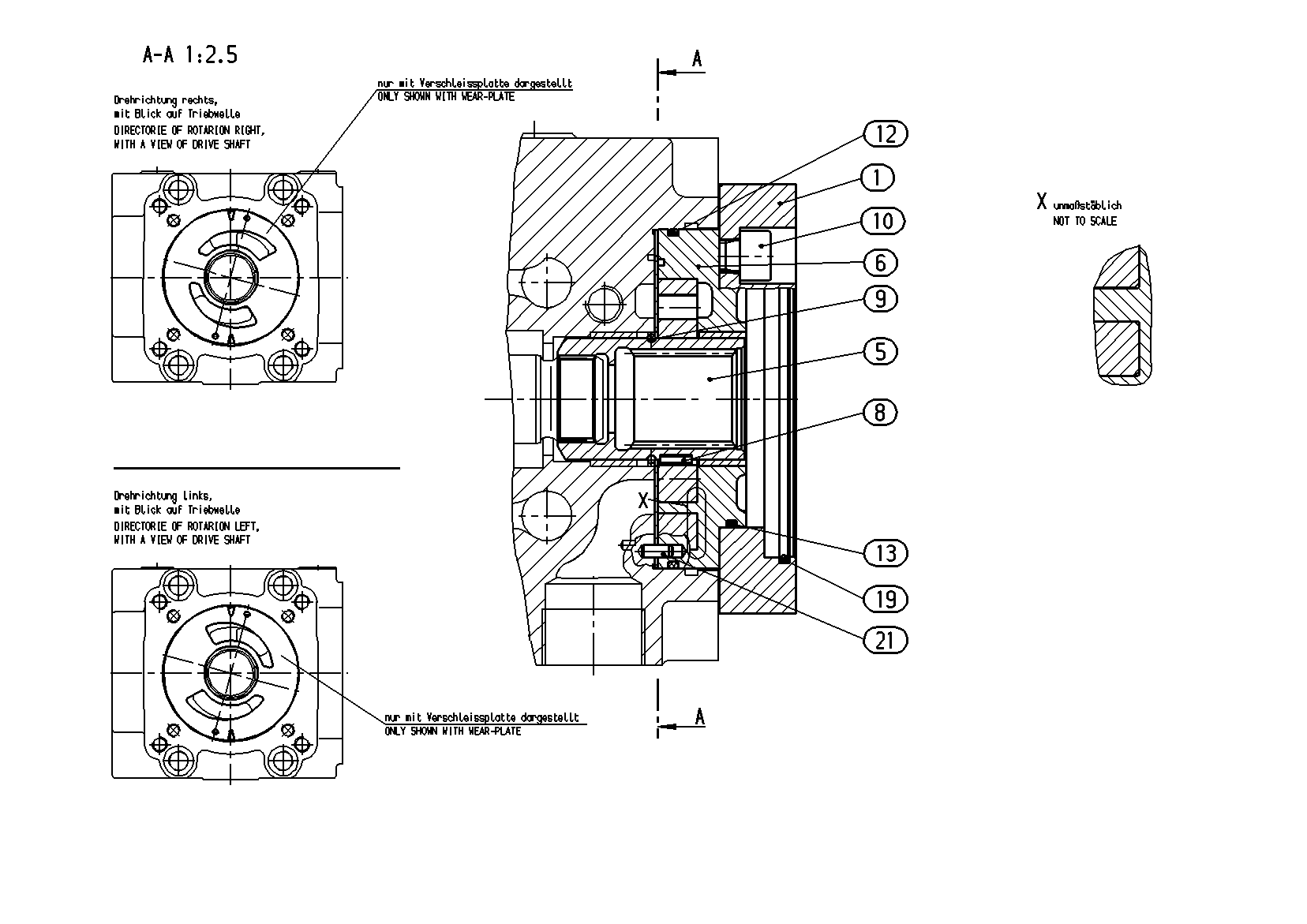

INTERNAL GEAR PUMPR902068050
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902068026 | INTERMEDIATE FLANGE | 1 | |
| 5 | R902025764 | THROUGH DRIVE SHAFT | 1 | |
| 6 | R902124940 | HOUSING Assembly parts list →L | 1 | |
| R902035854 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154589 | O-RINGD | 1 | ||
| R909084504 | O-RINGD | 1 | ||
| R913032365 | O-RINGD | 1 | ||
| R900760728 | STRAIGHT PIN | 1 |
