Assembly

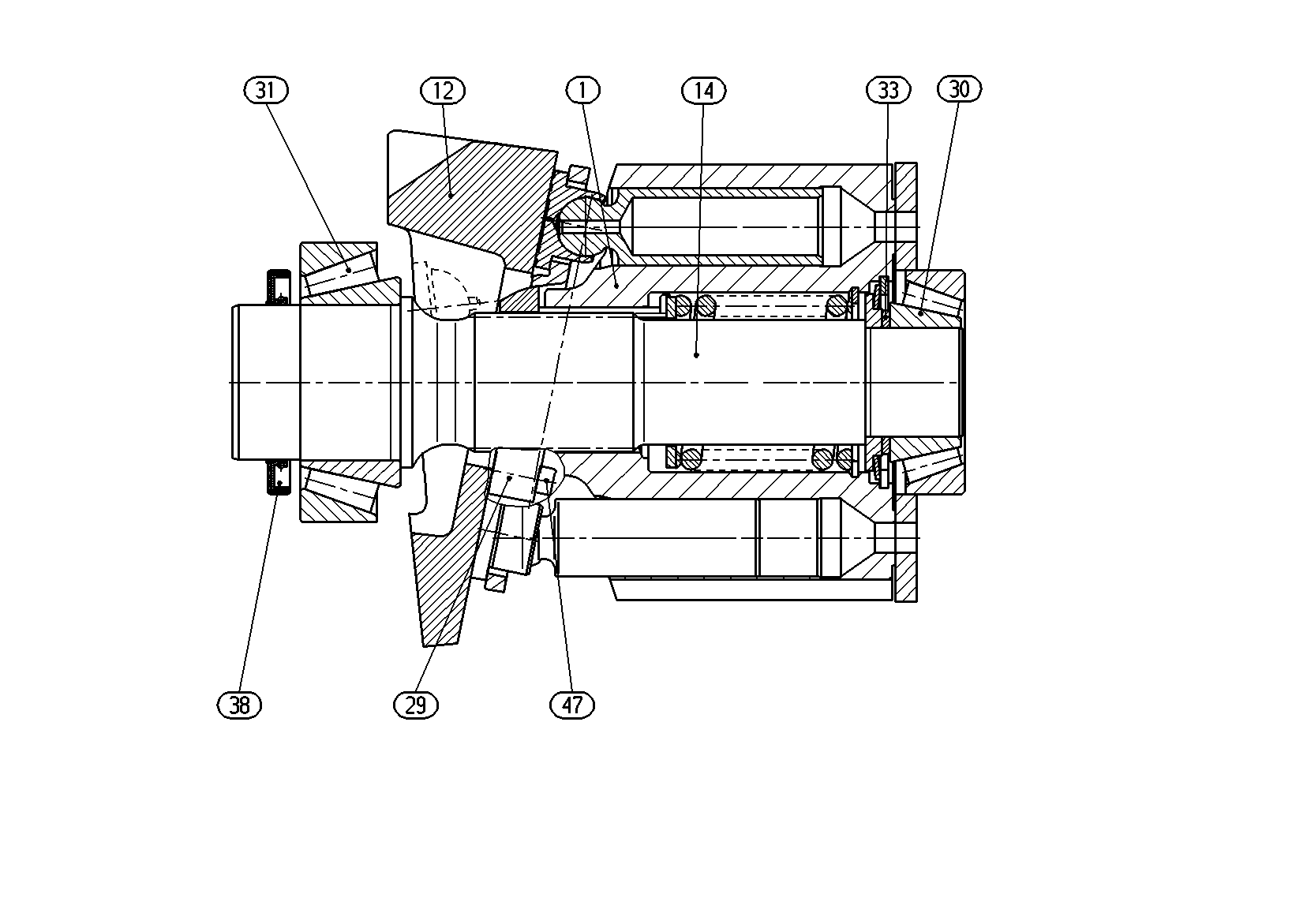

ROTARY GROUPR902070266
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902423281 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902068107 | SWIVEL BLOCK | 1 | ||
| 14 | R902069162 | DRIVE SHAFT | 1 | |
| R902069163 | RETAINING SEGMENT | 2 | ||
| R902601334 | TAPERED-ROLLER BEARING | 1 | ||
| R902601335 | TAPERED-ROLLER BEARING | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R909830386 | SHAFT SEALING RINGD | 1 | ||
| R909831328 | SOCKET HEAD CAP SCREW | 4 |
