Assembly

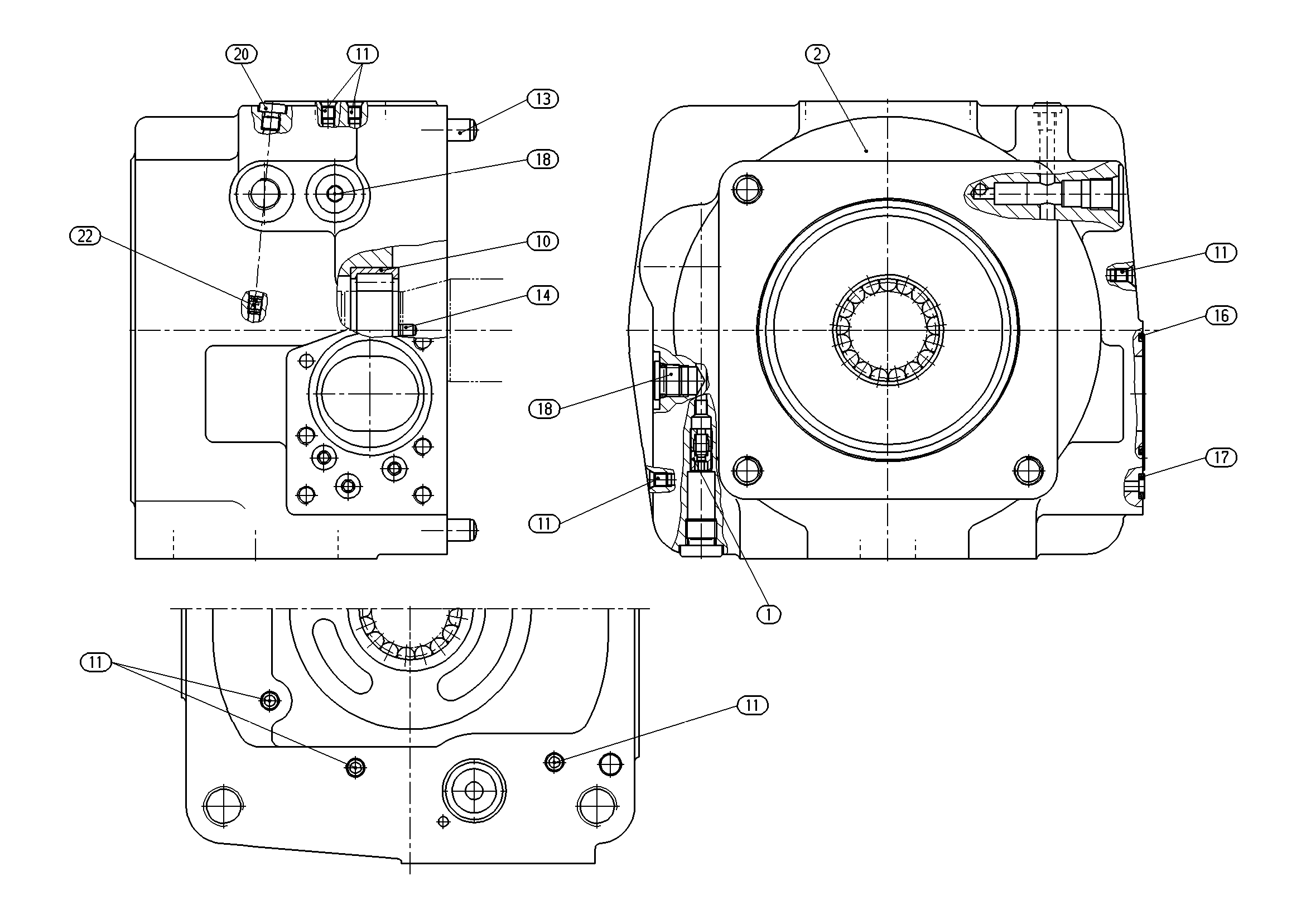

CONNECTION PLATE, RLR902071741
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902057656 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902066847 | CONNECTION PLATE, RL | 1 | ||
| R909156310 | CYL. ROLLER BEARING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R913009671 | STRAIGHT PIN | 2 | ||
| R909087755 | STRAIGHT PIN | 1 | ||
| R902600659 | O-RINGD | 1 | ||
| R902602890 | R-RINGD | 3 | ||
| R913044793 | SCREW PLUGD | 2 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| R909156494 | NOZZLE | 1 |
