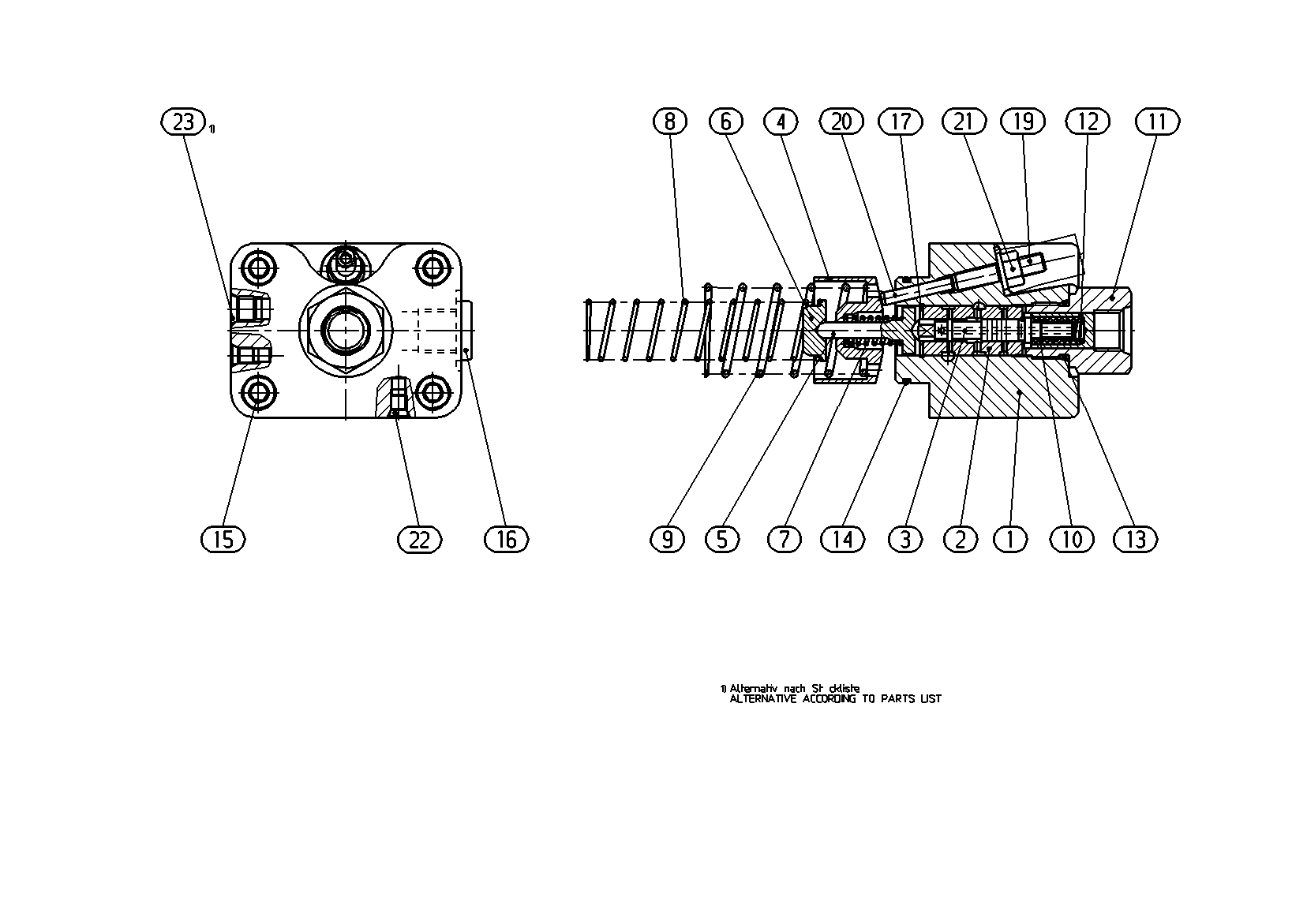

Assembly
CONTROL PARTR902072657
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902207699 | CONTROL HOUSING | 1 | |
| R909420570 | CONTROL SLEEVE | 1 | ||
| R902072509 | CONTROL PISTON | 1 | ||
| 4 | R909651119 | ADJUSTING BUSHING | 1 | |
| 5 | R909921351 | SPRING DISK | 1 | |
| R909412988 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909440313 | COMPRESSION SPRING | 1 | ||
| R909651117 | COMPRESSION SPRING | 1 | ||
| R902072508 | COMPRESSION SPRING | 1 | ||
| 11 | R902068840 | SCREW PLUG | 1 | |
| R902078790 | SPRING DISK | 1 | ||
| 13 | R909830860 | O-RING | 1 | |
| R909085560 | O-RINGD | 1 | ||
| 15 | R909083044 | SOCKET HEAD CAP SCREW | 4 | |
| R909153930 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
