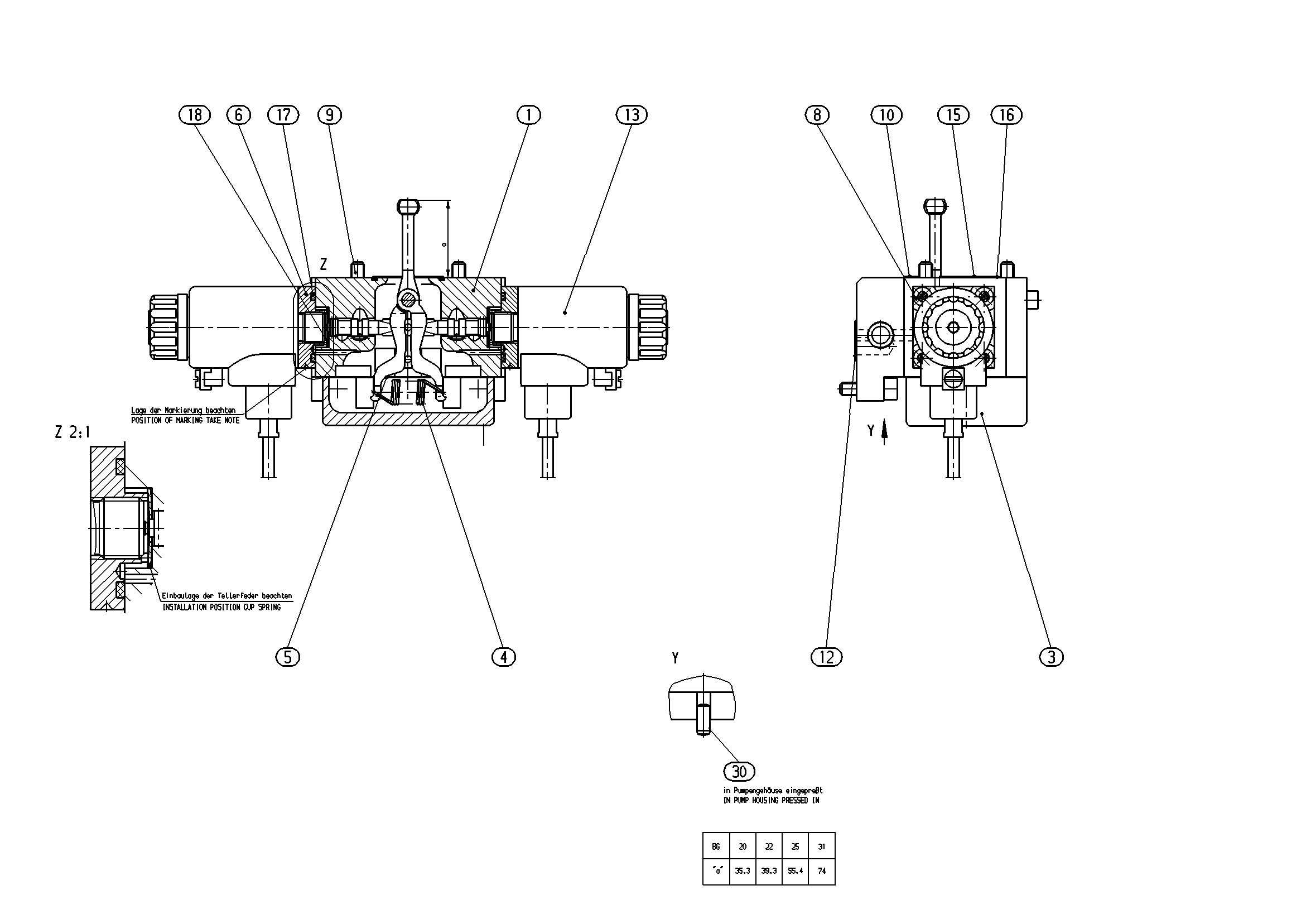

Assembly
CONTROL MODULER902073087
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902046894 | BASIC UNIT Assembly parts list →L | 1 | ||
| R909443201 | COVER | 1 | ||
| R902063327 | EXTENSION SPRING | 1 | ||
| R909651478 | SEALD | 1 | ||
| R902046037 | LOCATION PIECE | 2 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086178 | O-RINGD | 3 | ||
| R902228921 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | ||
| R909086333 | O-RING | 2 | ||
| R909086380 | O-RINGD | 1 | ||
| R909083764 | O-RING | 2 | ||
| R902601640 | DISC SPRING | 2 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| 98 | R902002418 | SEAL KIT | 1 |
