Assembly

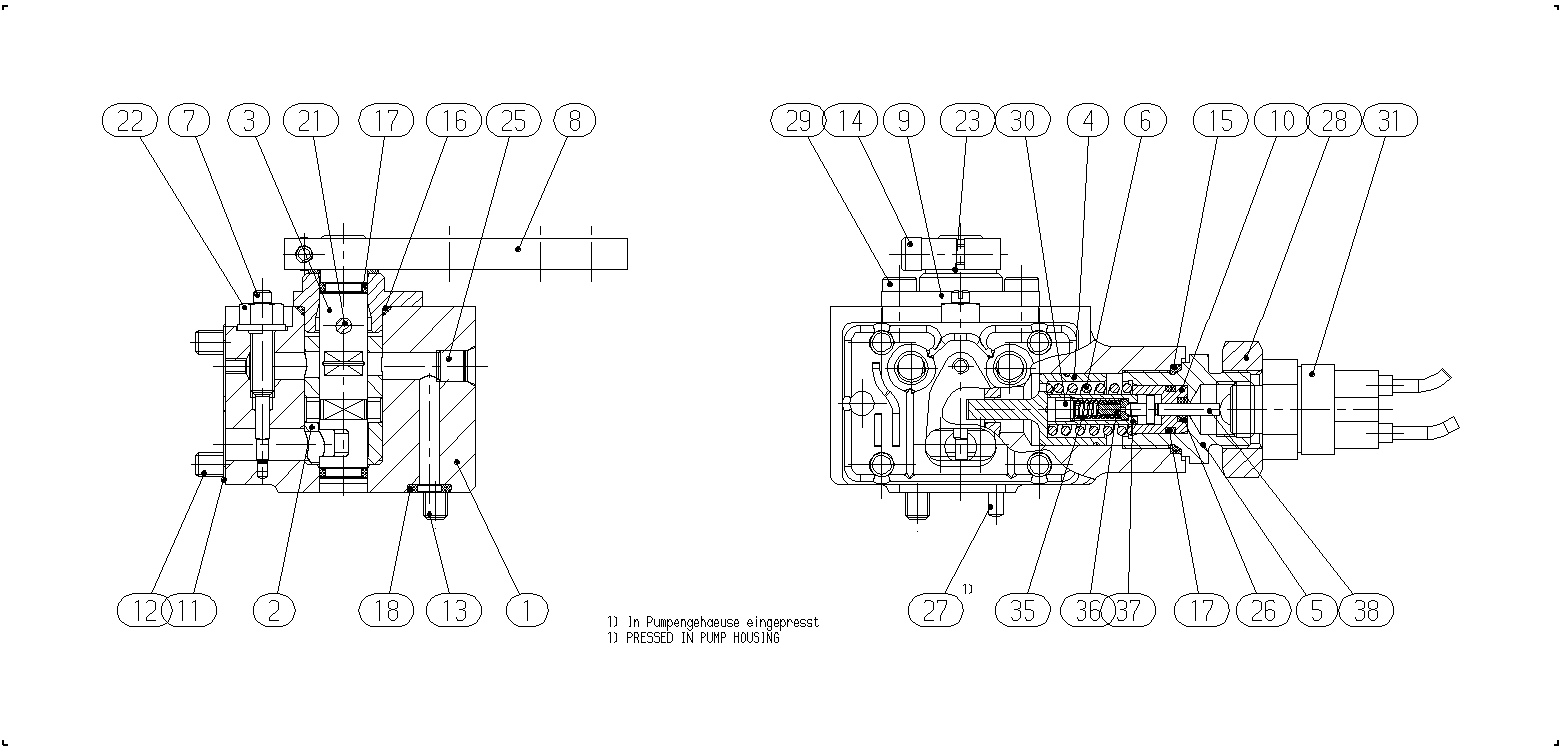

CONTROL UNITR902073246
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902012990 | HOUSING | 1 | ||
| R902013983 | CONTROL SLEEVE | 1 | ||
| R902076620 | CONTROL SHAFT | 1 | ||
| R909650254 | SPRING BUSH | 1 | ||
| R909444527 | NECK | 1 | ||
| R909421991 | COMPRESSION SPRING | 1 | ||
| R902010473 | ECCENTRIC PIN | 1 | ||
| R909401723 | LEVER | 1 | ||
| R909650255 | COVER | 1 | ||
| R902013833 | SEAL BUSHING | 1 | ||
| R902603829 | SEALD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084385 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086432 | O-RING | 1 | ||
| R909083728 | O-RING | 3 | ||
| R909157512 | O-RINGD | 1 | ||
| R909156217 | NEEDLE-ROLLER | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909086180 | SHIM RING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909086301 | O-RING | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R909830212 | HEXAGON NUT | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600705 | PLUG | 1 | ||
| R902600284 | SWITCH | 1 | ||
| R909412852 | COMPRESSION SPRING | 1 | ||
| R902021496 | SPRING DISK | 1 | ||
| R902013929 | SPRING SLEEV | 1 | ||
| R902013832 | STOP PIN | 1 |
