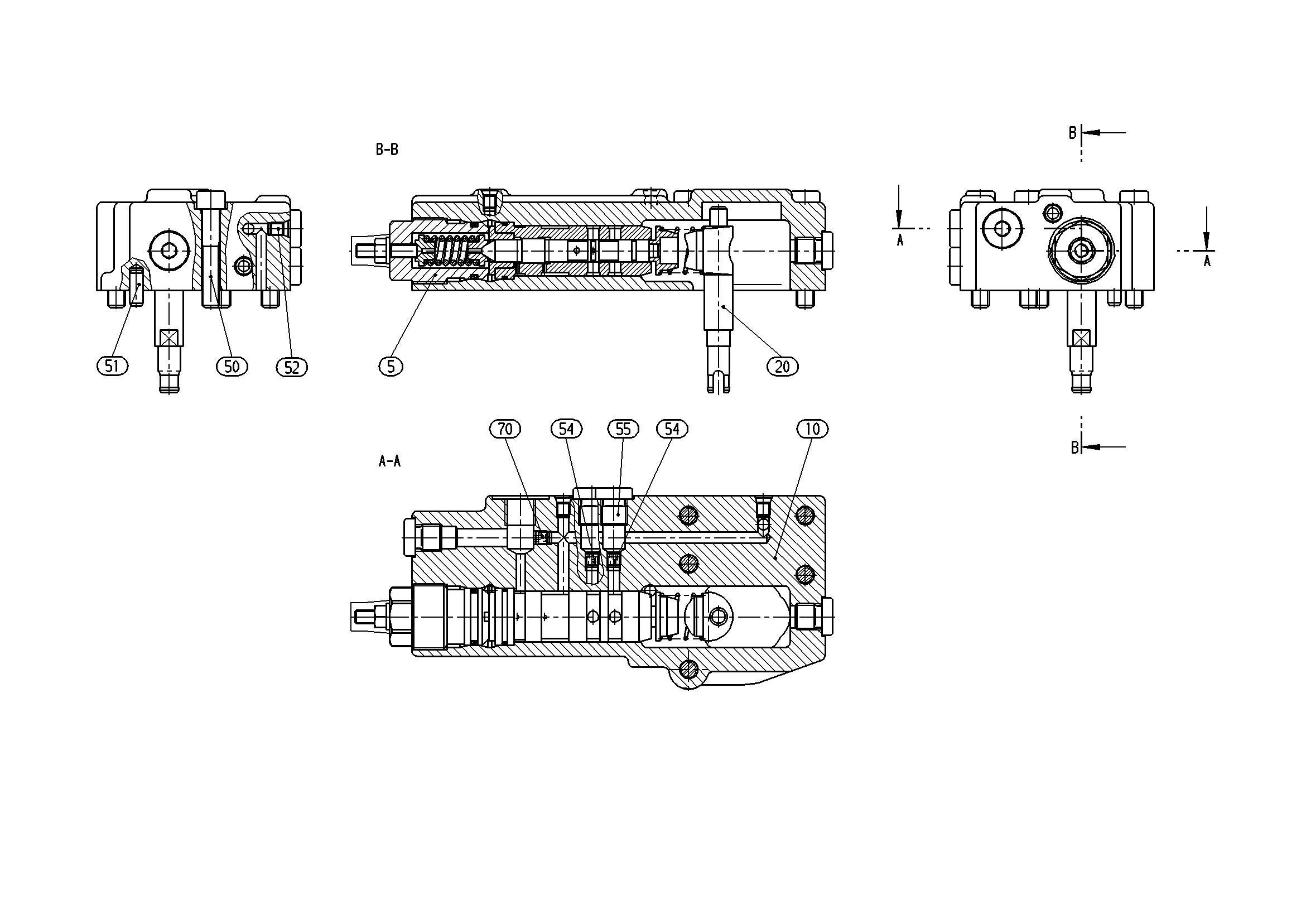

Assembly
REGULATORR902073302
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 5 | R902046828 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| 10 | R902046653 | CONTROL HOUSING | 1 | |
| R909651167 | BOLT | 1 | ||
| R909083043 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909156494 | NOZZLE | 2 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909156493 | NOZZLE | 1 | ||
| 98 | R902002461 | SEAL KITD | 1 |
