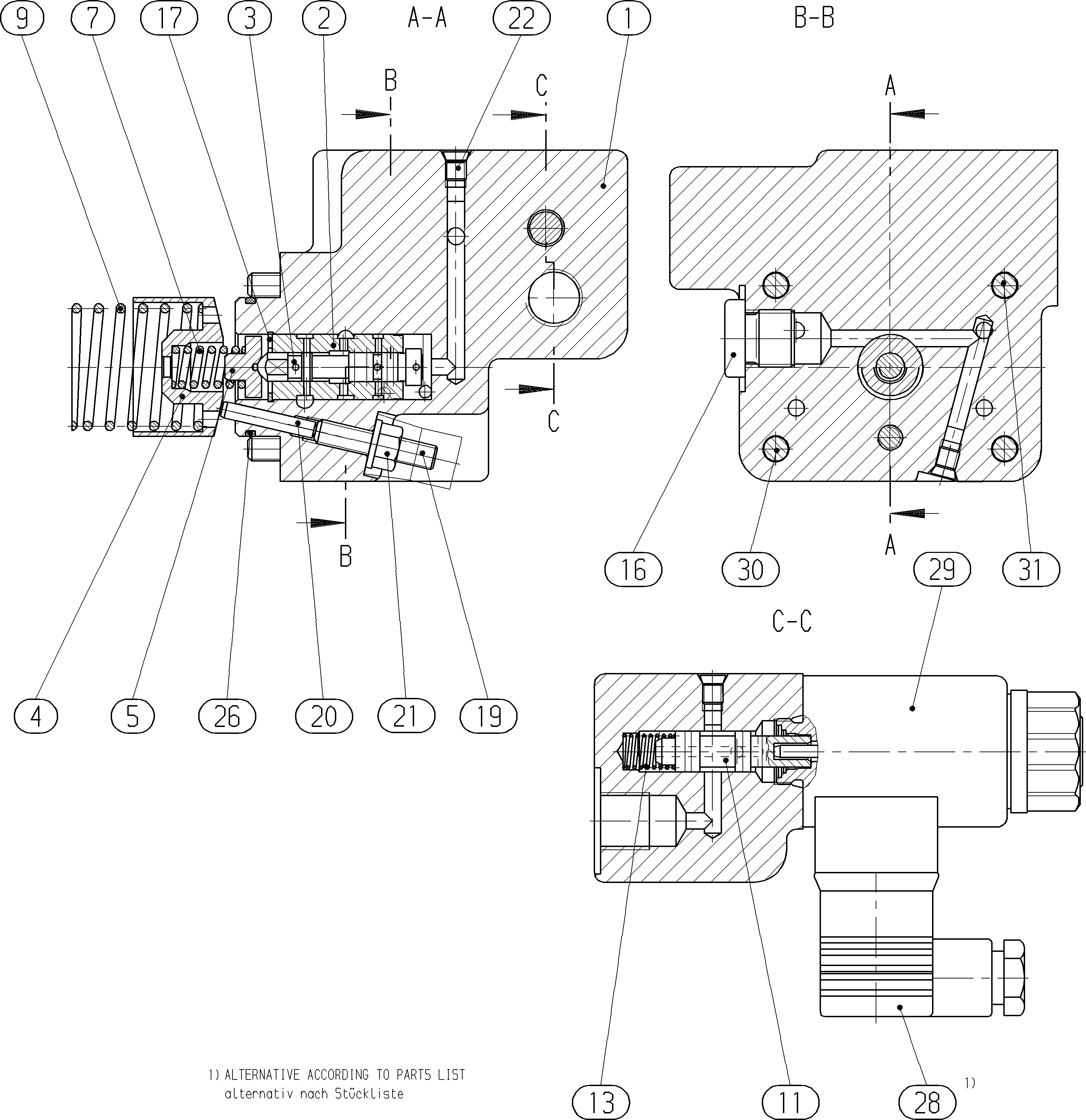

Assembly
CONTROL PARTR902073631
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902238083 | CONTROL HOUSING | 1 | ||
| R902073676 | CONTROL SLEEVE | 1 | ||
| R902073677 | CONTROL PISTON | 1 | ||
| R909651118 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909651116 | COMPRESSION SPRING | 1 | ||
| R902045130 | CONTROL PISTON | 1 | ||
| R902045064 | COMPRESSION SPRING | 1 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909157562 | O-RINGD | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R902602669 | SWITCHING SOLENOID | 1 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 3 | ||
| R909154309 | SOCKET HEAD CAP SCREW | 1 |
