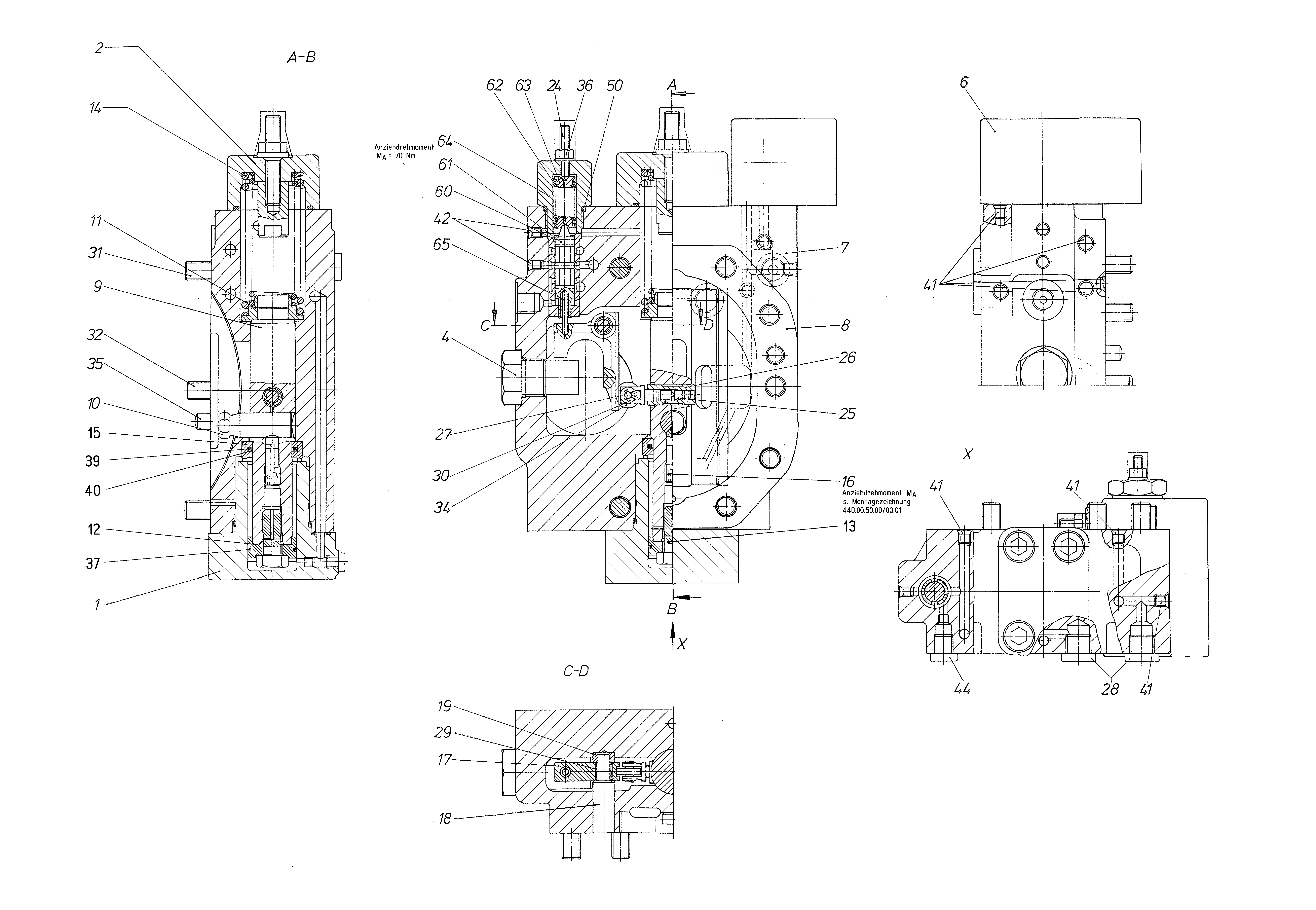

Assembly
CONTROLR902073716
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902073717 | COVER Assembly parts list →L | 1 | ||
| R909433733 | COVER Assembly parts list →L | 1 | ||
| R909438074 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R902050888 | SEQUENCE VALVE Assembly parts list →L | 1 | ||
| R909431745 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909651606 | POSITIONING PISTON | 1 | ||
| R909425503 | POSITIONING STUD | 1 | ||
| R902077438 | SPRING DISK | 1 | ||
| R909426605 | PISTON | 1 | ||
| R902031876 | HEXAGON SCREW | 1 | ||
| R909425746 | COMPRESSION SPRING | 1 | ||
| R902070567 | SEAL RING | 1 | ||
| R909449055 | SETSCREW | 1 | ||
| R909426911 | LEVER | 1 | ||
| R909413698 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909425219 | SETSCREW | 1 | ||
| R909425733 | MEASURING PISTON | 1 | ||
| R909426916 | ADJUSTING BUSH | 1 | ||
| R909411231 | BOLT | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909085810 | LOCKING WASHER | 2 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R902602841 | STEEL SEALING RING | 1 | ||
| R909087513 | O-RING | 1 | ||
| R909157666 | ROD SEAL | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909439741 | CONTROL SLEEVE | 1 | ||
| R909439742 | CONTROL PISTON | 1 | ||
| R909439288 | COMPRESSION SPRING | 1 | ||
| R909413038 | SPRING DISK | 2 | ||
| R909439752 | SCREW PLUG | 1 | ||
| R909440328 | PIN | 1 |
