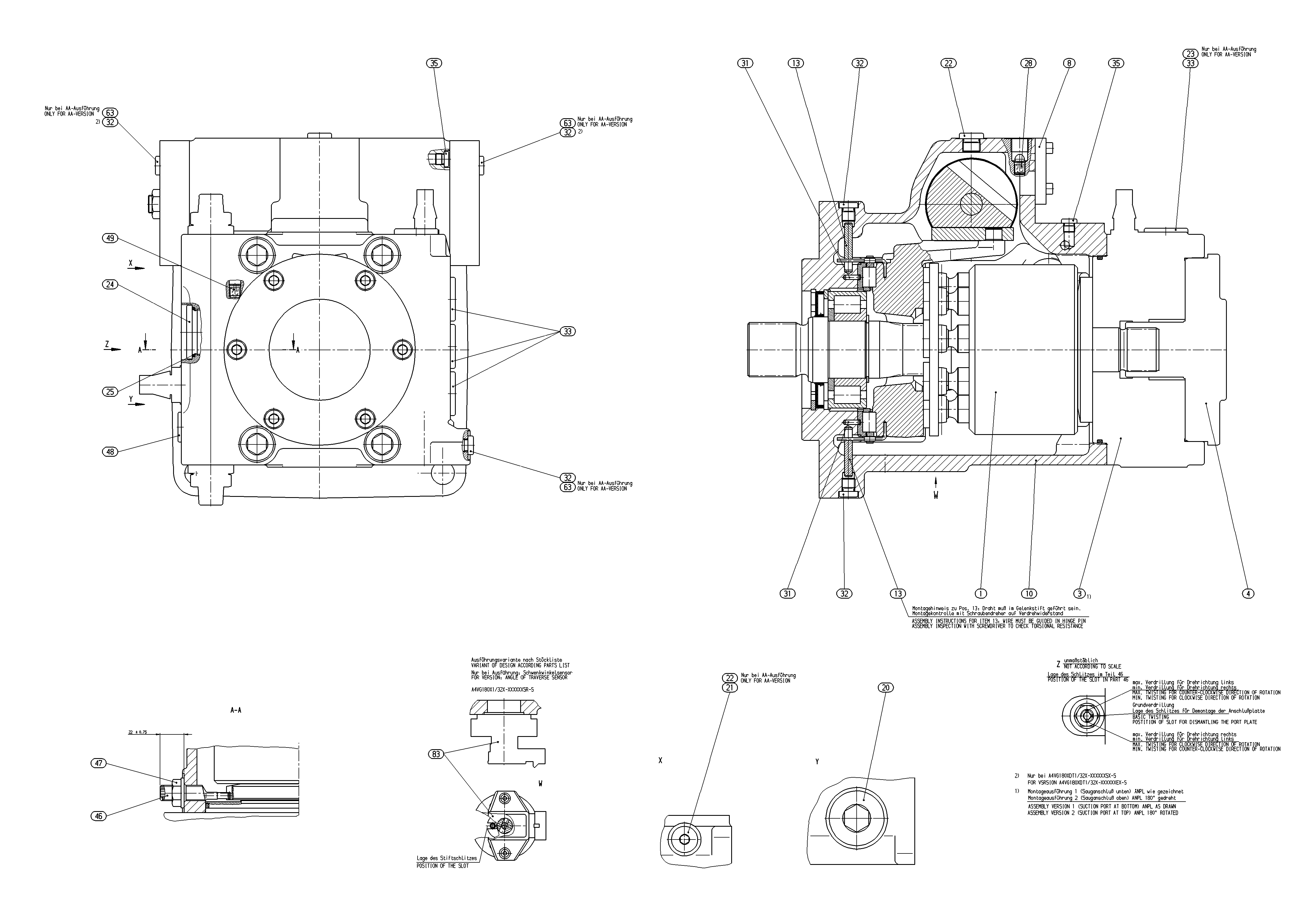

Assembly
AXIAL-PISTON PUMPR902074232
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199957 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902019709 | CONTROL Assembly parts list →L | 1 | ||
| R909608997 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606234 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909429211 | COVER Assembly parts list →L | 1 | ||
| R902015660 | HOUSING | 1 | ||
| R902118898 | PIVOT PIN | 2 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909083229 | SCREW PLUG | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| 26 | R909153572 | SCREW PLUG | 1 | |
| R909426703 | NOZZLE | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153861 | SCREW PLUGD | 4 | ||
| R909435693 | ECCENTRIC SCREW | 1 | ||
| R909157393 | SETSCREW | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909426708 | NOZZLE | 1 | ||
| 98 | R902095663 | SEAL KIT | 1 |
