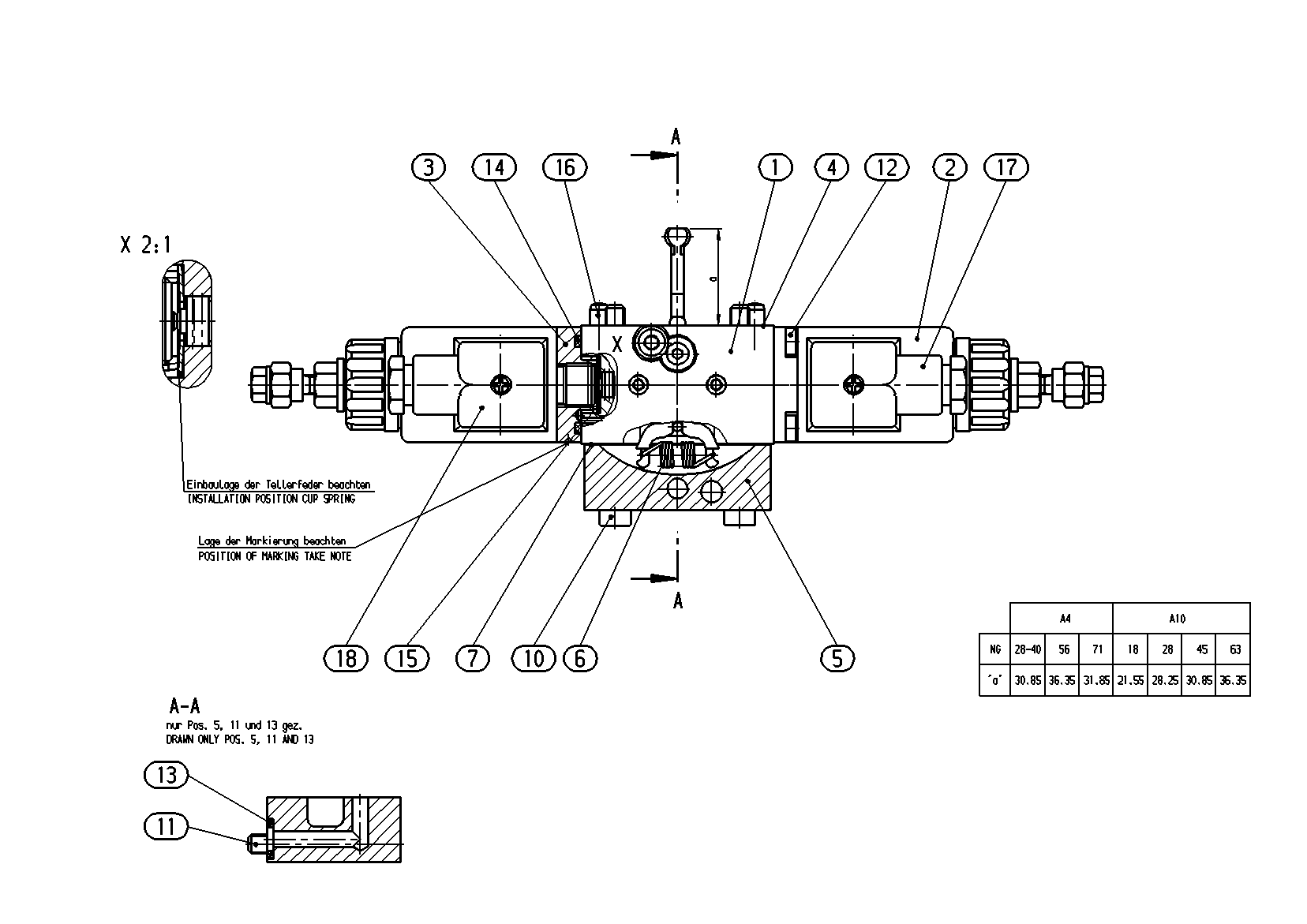

Assembly
CONTROL MODULER902074564
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902046781 | BASIC UNIT Assembly parts list →L | 1 | ||
| R902602663 | DUMMY | 2 | ||
| R902046037 | LOCATION PIECE | 2 | ||
| R902603829 | SEALD | 1 | ||
| R902046034 | CONNECTION COVER | 1 | ||
| 6 | R902073428 | EXTENSION SPRING | 1 | |
| R902603830 | SEALD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083027 | SOCKET HEAD CAP SCREW | 1 | |
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| R902600655 | O-RINGD | 1 | ||
| 14 | R909083764 | O-RING | 2 | |
| R902601640 | DISC SPRINGD | 2 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| 17 | R913022795 | PLUG-IN CONNECTOR | 1 | |
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| 98 | R902002395 | SEAL KIT | 1 |
