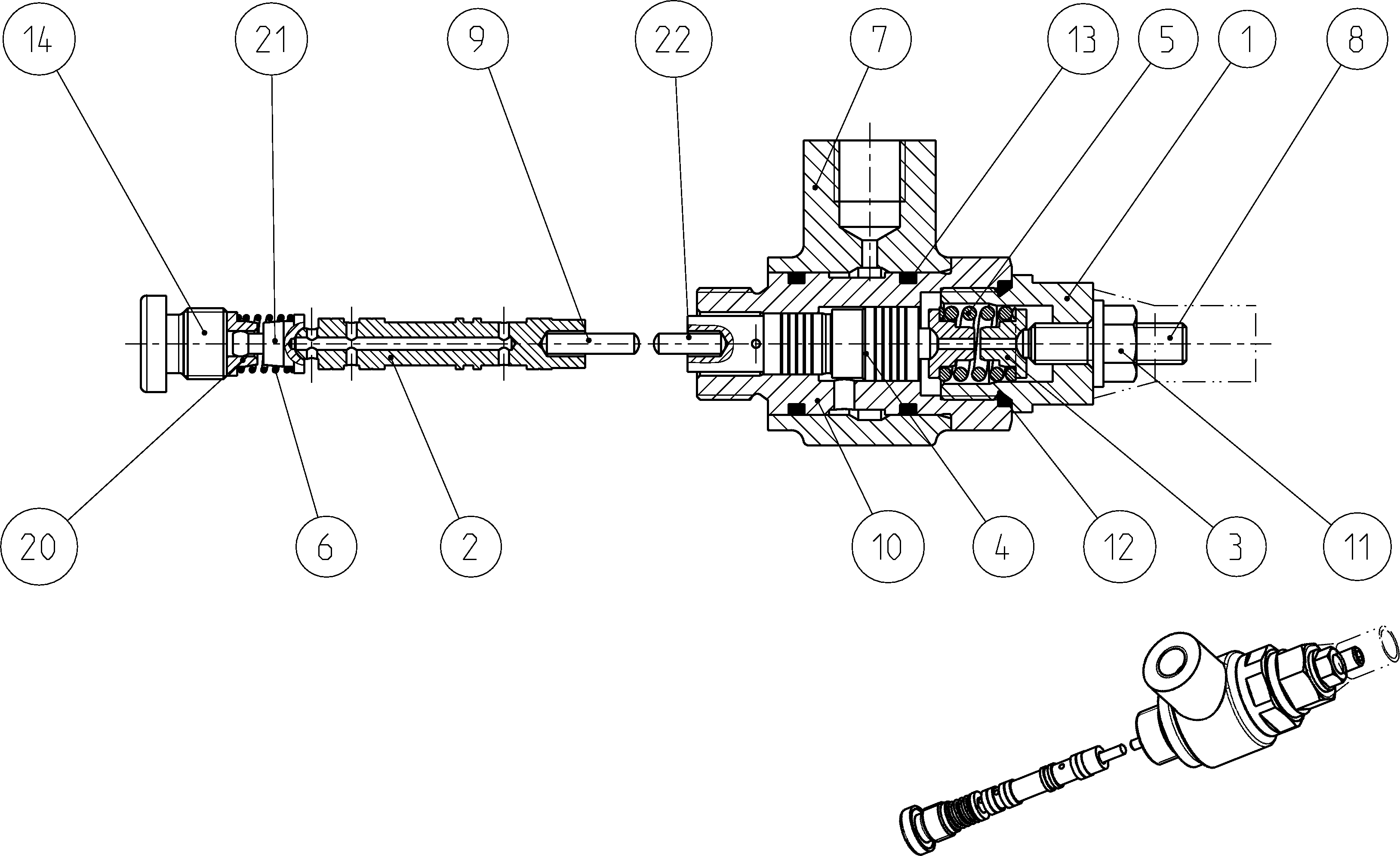

Assembly
CONTROL ELEMENTR902074612
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R902022771 | CONTROL PISTON | 1 | ||
| R909436991 | SPRING BOLT | 2 | ||
| R909650889 | DIFFERENTIAL PISTON | 1 | ||
| R909443278 | COMPRESSION SPRING | 1 | ||
| R909436459 | COMPRESSION SPRING | 1 | ||
| R909419771 | CONNECTING PIECE | 1 | ||
| R909444953 | SETSCREW | 1 | ||
| R902237857 | BOLT | 1 | ||
| R902042717 | THREADED PART | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 2 | ||
| R909083761 | O-RINGD | 2 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R902213895 | SPRING DISK | 1 | ||
| R902213896 | SPRING BOLT | 1 | ||
| R909440794 | BOLT | 1 |
