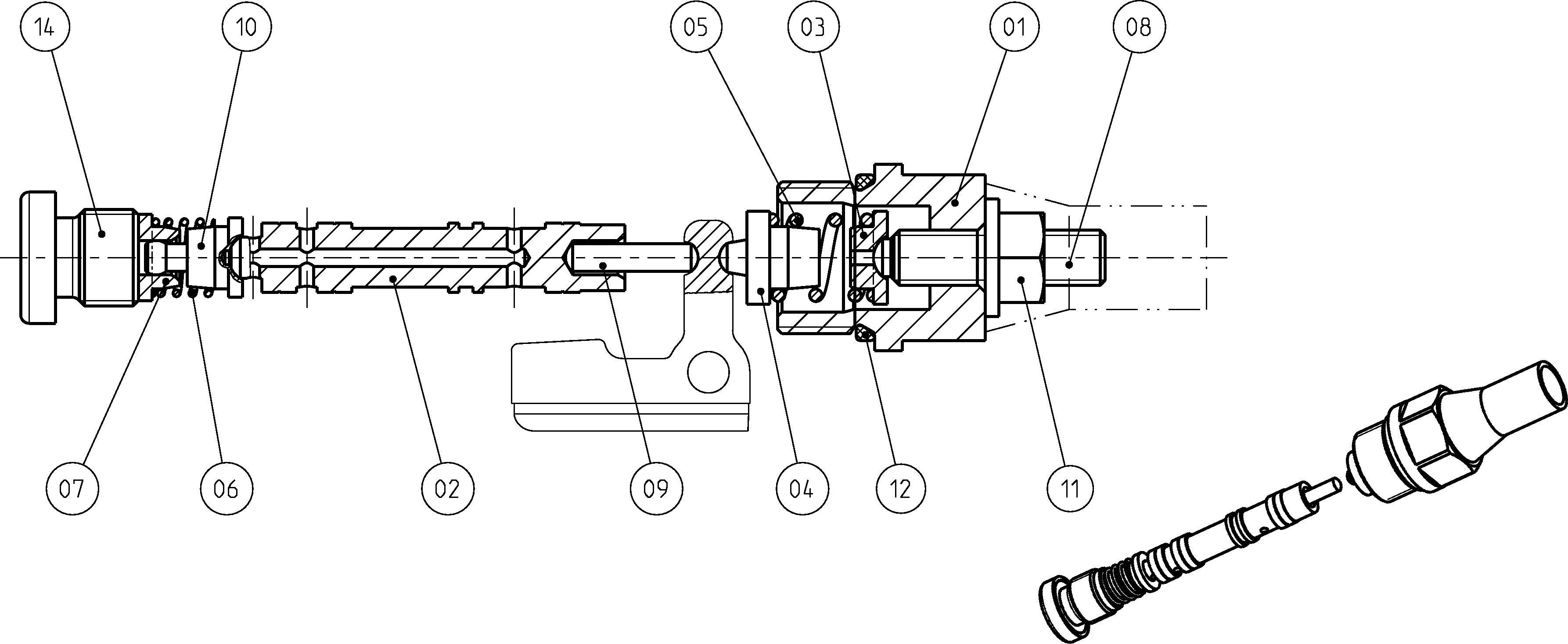

Assembly
CONTROL ELEMENTR902074866
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R902022771 | CONTROL PISTON | 1 | ||
| 3 | R902066558 | SPRING BOLT | 1 | |
| R909440787 | SPRING BOLT | 1 | ||
| 5 | R902012047 | COMPRESSION SPRING | 1 | |
| 6 | R909436459 | COMPRESSION SPRING | 1 | |
| 7 | R902213895 | SPRING DISK | 1 | |
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R902237857 | BOLT | 1 | |
| R902213896 | SPRING BOLT | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909153930 | SCREW PLUG | 1 |
