Assembly

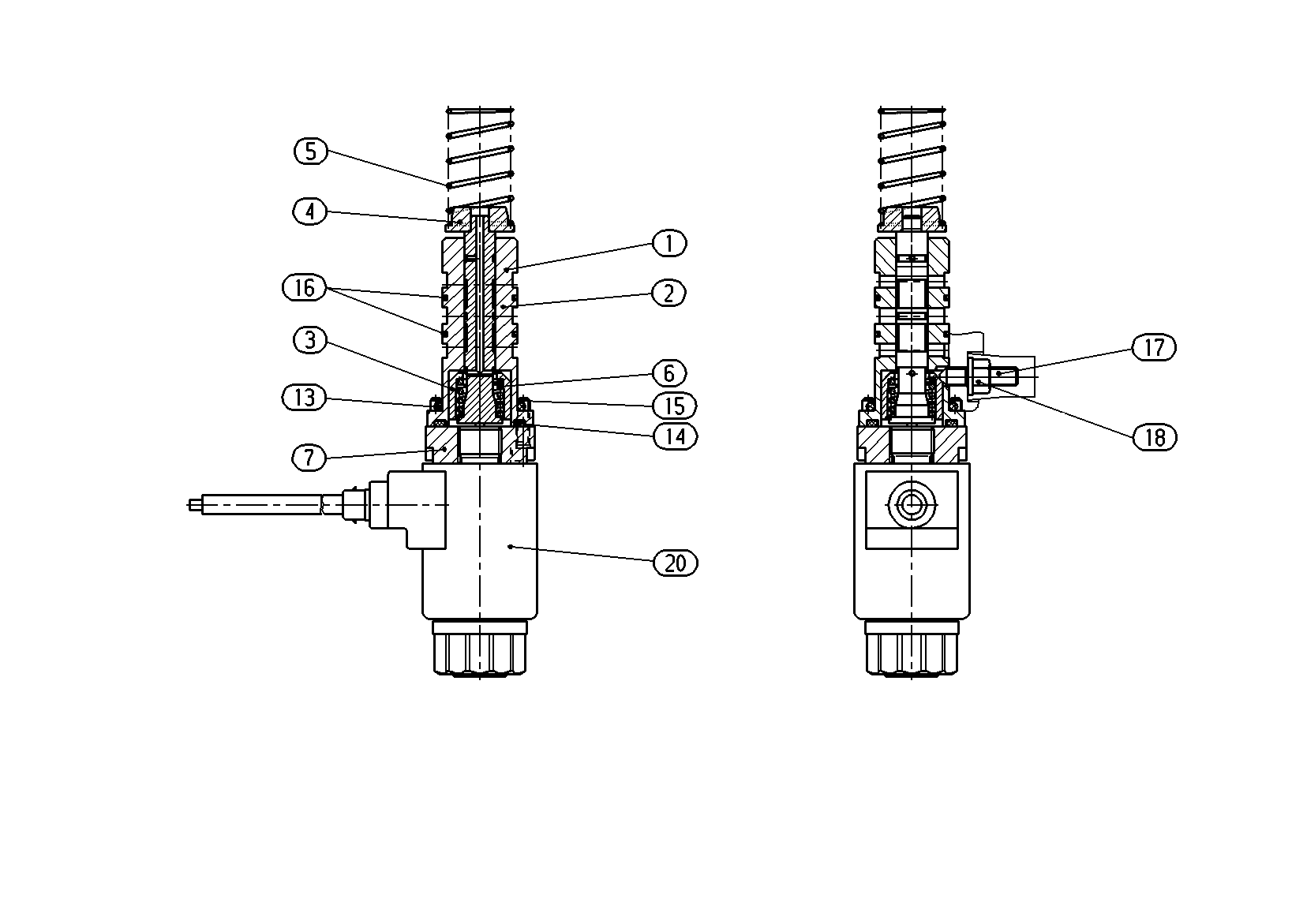

CONTROL ELEMENTR902074889
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902066811 | CONTROL SLEEVE | 1 | |
| 2 | R902105206 | CONTROL PISTON | 1 | |
| R902005735 | ADJUSTING BUSHING | 1 | ||
| R909443179 | SPRING DISK | 1 | ||
| 5 | R909440876 | COMPRESSION SPRING | 1 | |
| R909449773 | COMPRESSION SPRING | 1 | ||
| R902055741 | INTERMEDIATE PIECE | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909083761 | O-RING | 1 | ||
| R909083004 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R902601678 | STEEL SEALING RING | 2 | |
| 17 | R909157649 | SETSCREW | 1 | |
| 18 | R909152425 | SEALING NUT | 1 | |
| R902603436 | PROPORTIONAL SOLENOID | 1 |
