Assembly

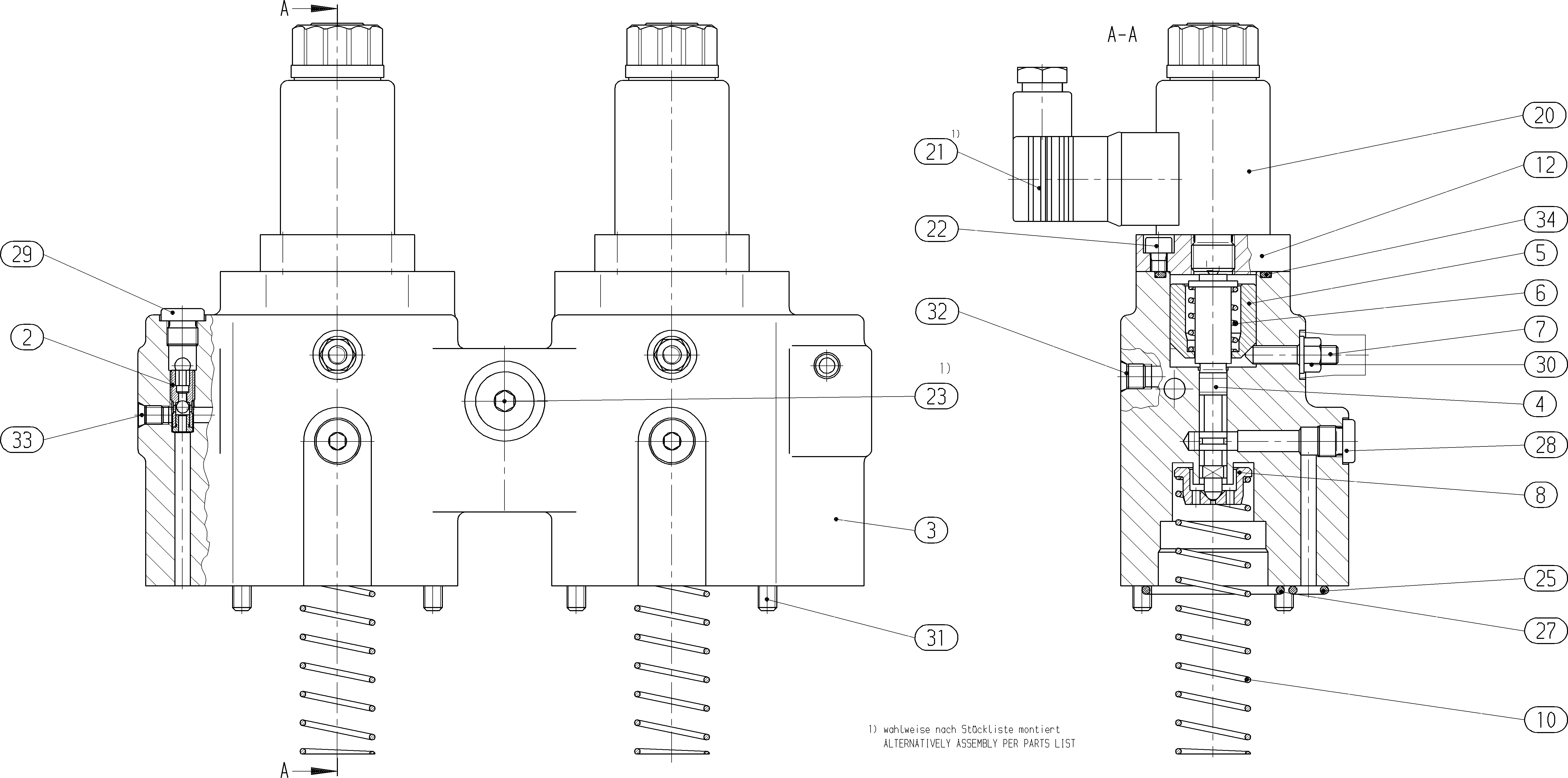

CONTROL MODULER902075092
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902070561 | SHUTTLE VALVE Assembly parts list →L | 2 | ||
| R902070688 | CONTROL HOUSING | 1 | ||
| R902206753 | CONTROL PISTON | 2 | ||
| R909426486 | SPRING BUSH | 2 | ||
| R909439126 | COMPRESSION SPRING | 2 | ||
| R909420992 | SETSCREW | 2 | ||
| R902206754 | SPRING DISK | 2 | ||
| R902080952 | COMPRESSION SPRING | 2 | ||
| R902073550 | LOCATION PIECE | 2 | ||
| R902602653 | PROPORTIONAL SOLENOID | 2 | ||
| R913022795 | PLUG-IN CONNECTOR | 2 | ||
| R909083009 | SOCKET HEAD CAP SCREW | 8 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R902600655 | O-RINGD | 4 | ||
| R902600656 | O-RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUG | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909083051 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909086730 | O-RING | 2 |
