Assembly

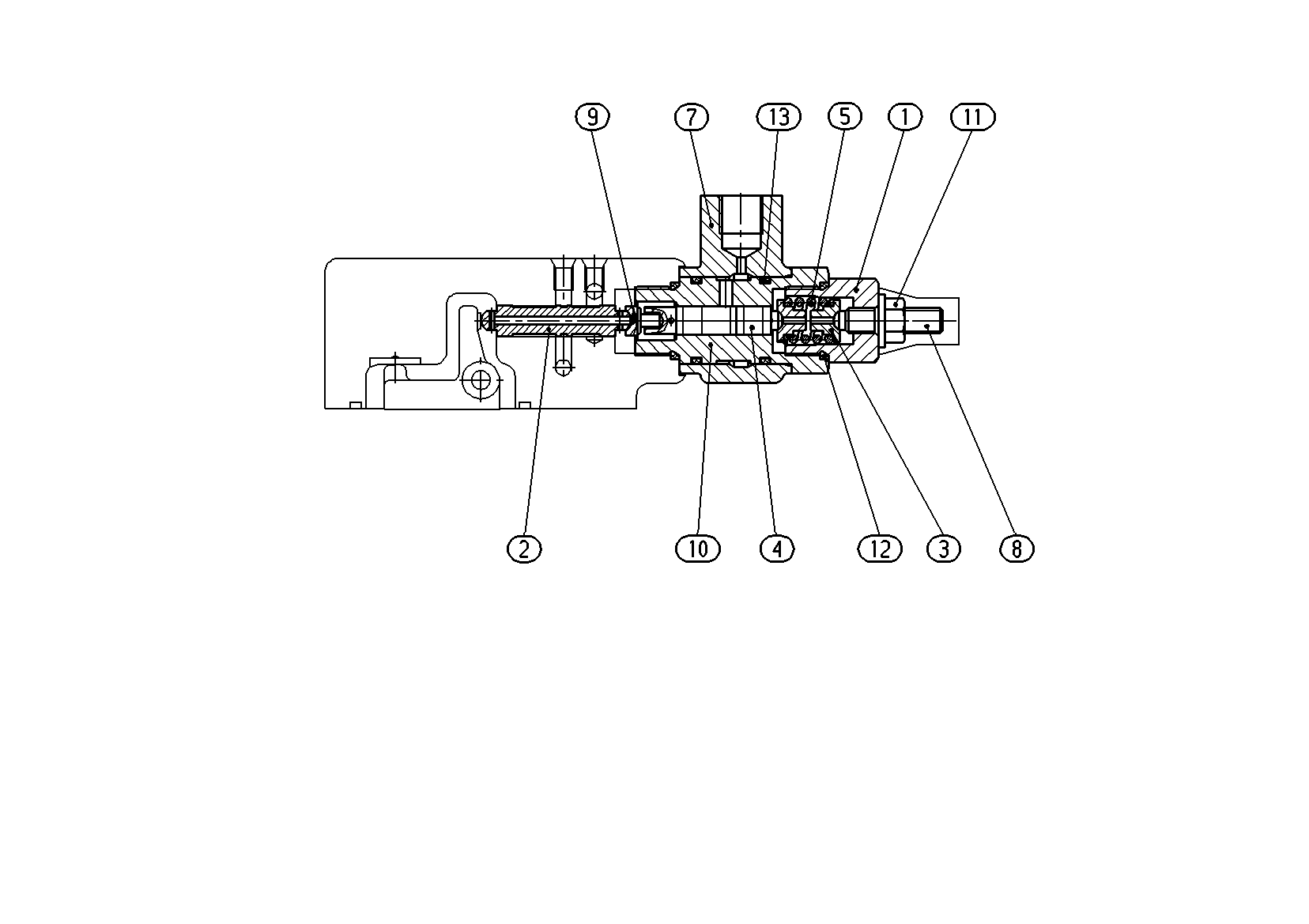

CONTROL ELEMENTR902075626
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R909432439 | CONTROL PISTON | 1 | ||
| R909436991 | SPRING BOLT | 2 | ||
| R902075623 | DIFFERENTIAL PISTON | 1 | ||
| 5 | R909443278 | COMPRESSION SPRING | 1 | |
| R909419771 | CONNECTING PIECE | 1 | ||
| R909444953 | SETSCREW | 1 | ||
| 9 | R902017439 | BOLT | 1 | |
| R902075622 | THREADED PART | 1 | ||
| 11 | R909152707 | SEALING NUTD | 1 | |
| R909083758 | O-RINGD | 2 | ||
| 13 | R909083761 | O-RINGD | 2 |
