Assembly

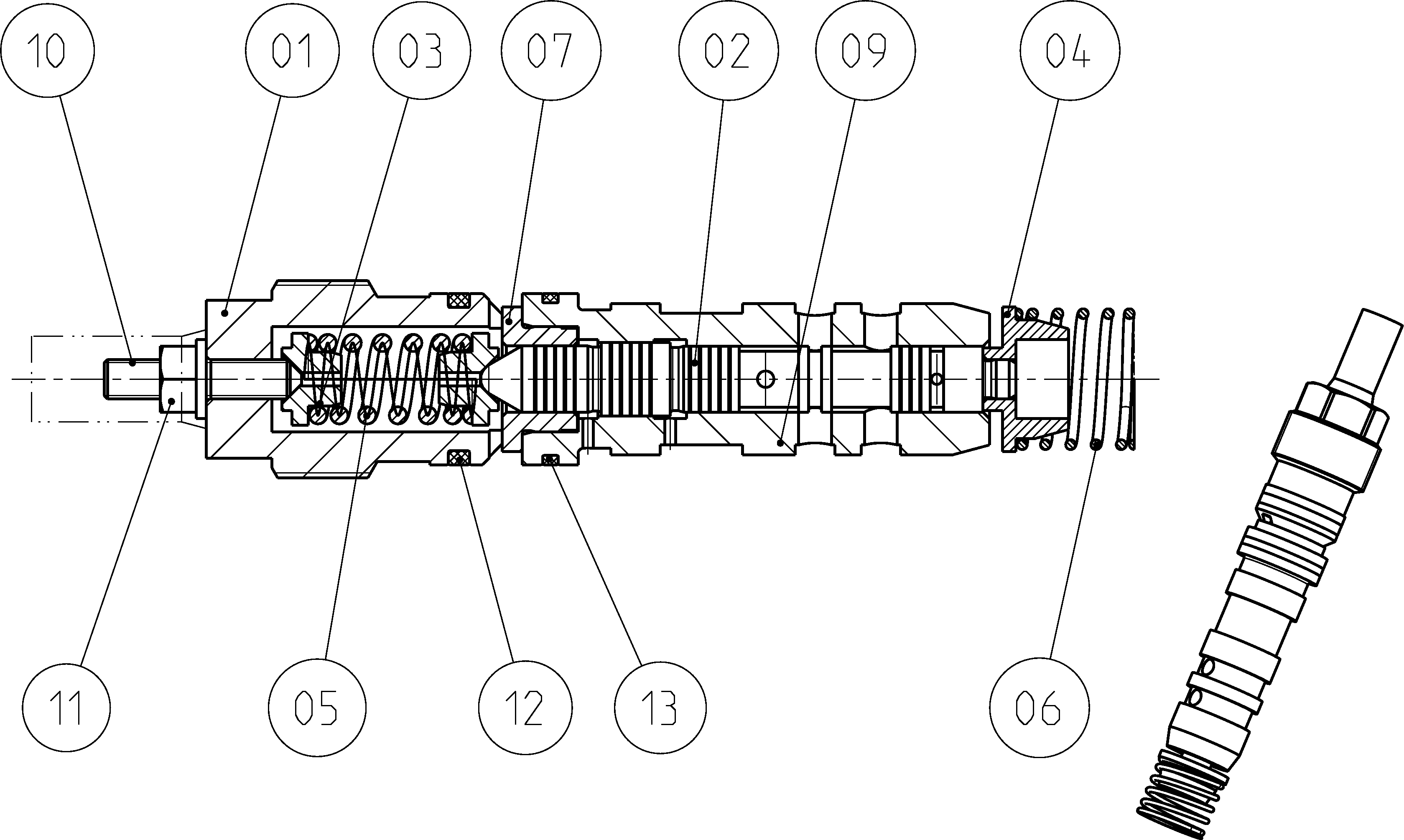

CONTROL ELEMENTR902075736
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909439388 | SCREW PLUG | 1 | ||
| R909439387 | CONTROL PISTON | 1 | ||
| R909439394 | SPRING DISK | 2 | ||
| 4 | R909439393 | SPRING DISK | 1 | |
| 5 | R909439391 | COMPRESSION SPRING | 1 | |
| 6 | R909439392 | COMPRESSION SPRING | 1 | |
| 7 | R909439390 | BUSHING | 1 | |
| 9 | R909439386 | CONTROL SLEEVE | 1 | |
| R909154140 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909830129 | O-RINGD | 1 |
