Assembly

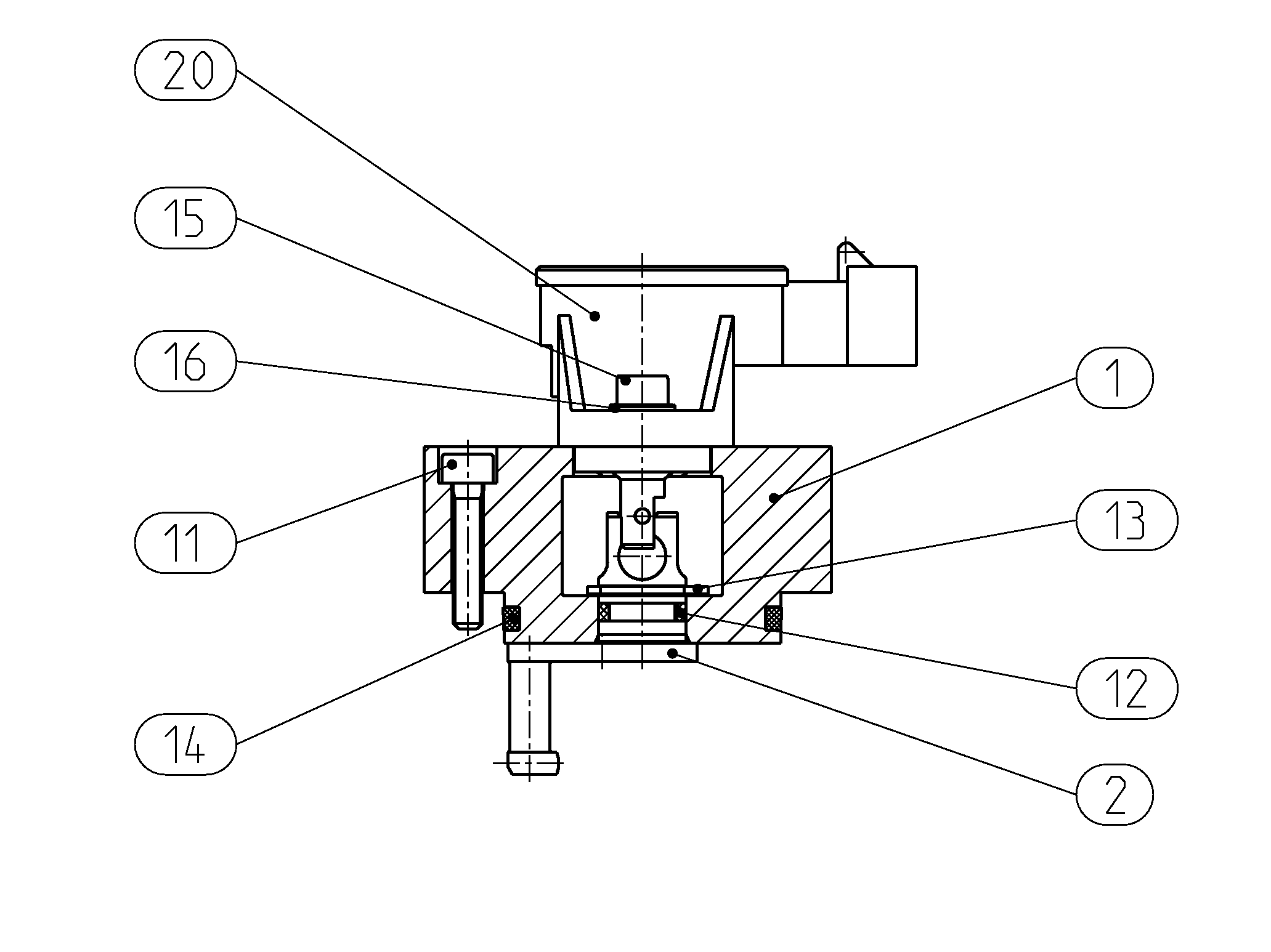

SWIVEL ANGLE SENSORR902076591
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902084598 | SENSOR HOUSING | 1 | ||
| R902084600 | SENSOR SHAFT | 1 | ||
| 11 | R902215517 | SOCKET HEAD CAP SCREW | 3 | |
| R909083728 | O-RING | 1 | ||
| 13 | R909083346 | RETAINING RING | 1 | |
| 14 | R909086730 | O-RING | 1 | |
| R909083003 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010109 | WASHER | 2 | ||
| R902601927 | ROT. ANGLE SENSOR | 1 |
