Assembly

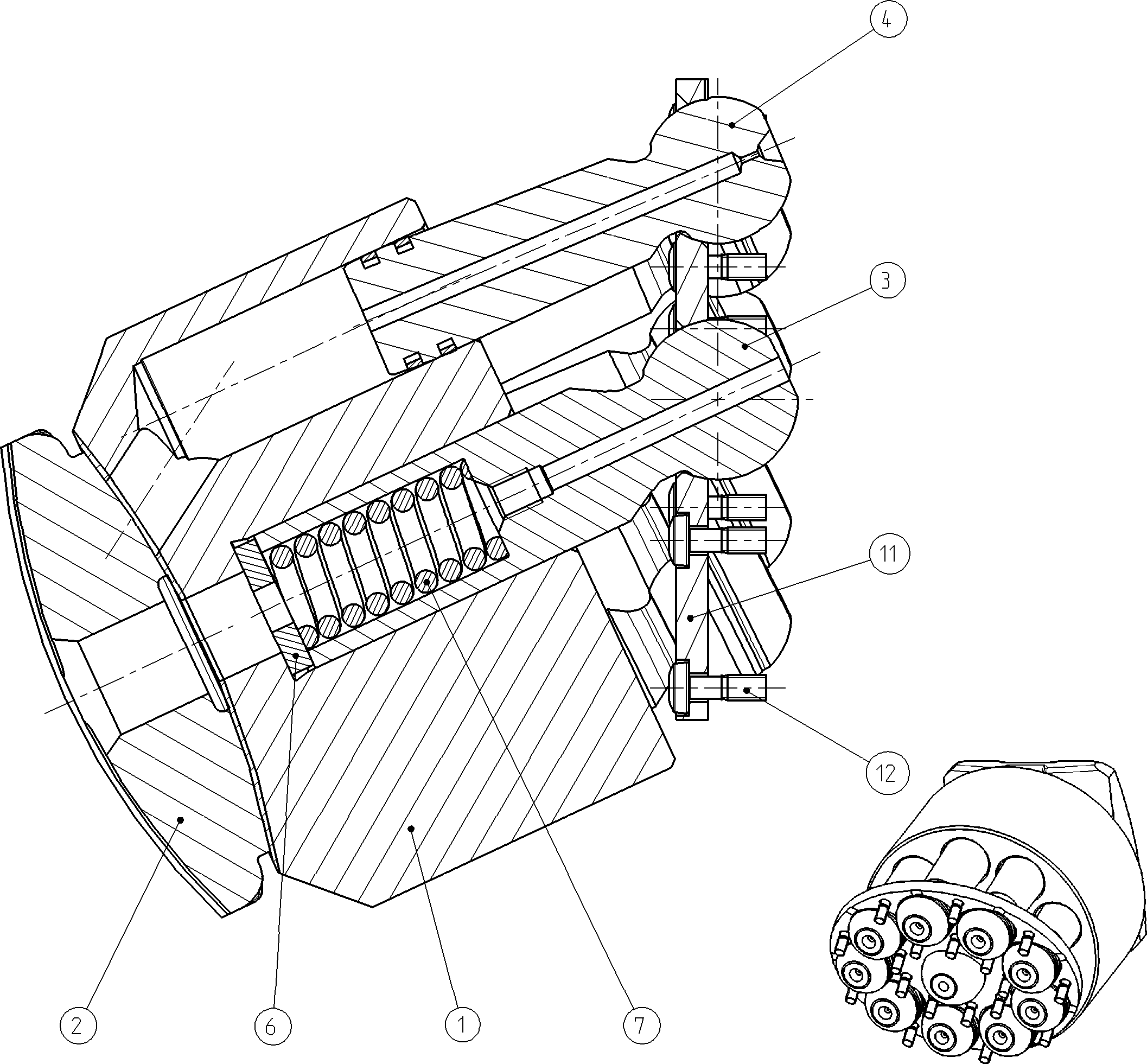

ROTARY GROUPR902077192
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902077098 | CYLINDER | 1 | ||
| R902077096 | CONTROL LENS | 1 | ||
| R909921508 | CENTER PIN | 1 | ||
| R902077191 | PISTON | 9 | ||
| R902077200 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902014282 | COMPRESSION SPRING | 1 | ||
| R902257042 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 18 |
