Assembly

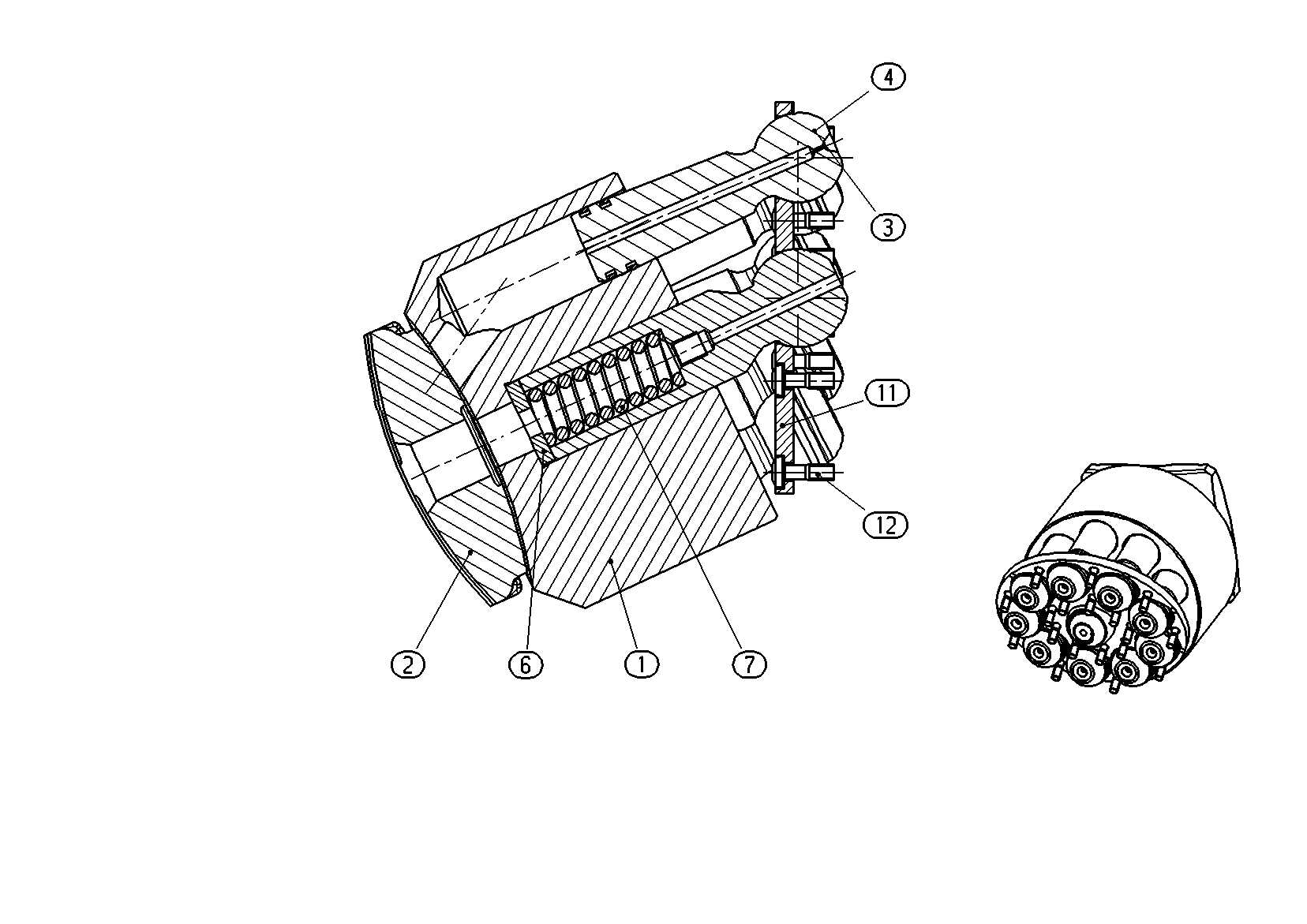

ROTARY GROUPR902077197
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902077104 | CYLINDER | 1 | |
| R902077102 | CONTROL LENS | 1 | ||
| R909921576 | CENTER PIN | 1 | ||
| R902077196 | PISTON | 9 | ||
| R902077201 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902018126 | COMPRESSION SPRING | 1 | ||
| 11 | R902257045 | RETAINING PLATE | 1 | |
| R902602493 | PAN-HEAD SCREW | 18 |
