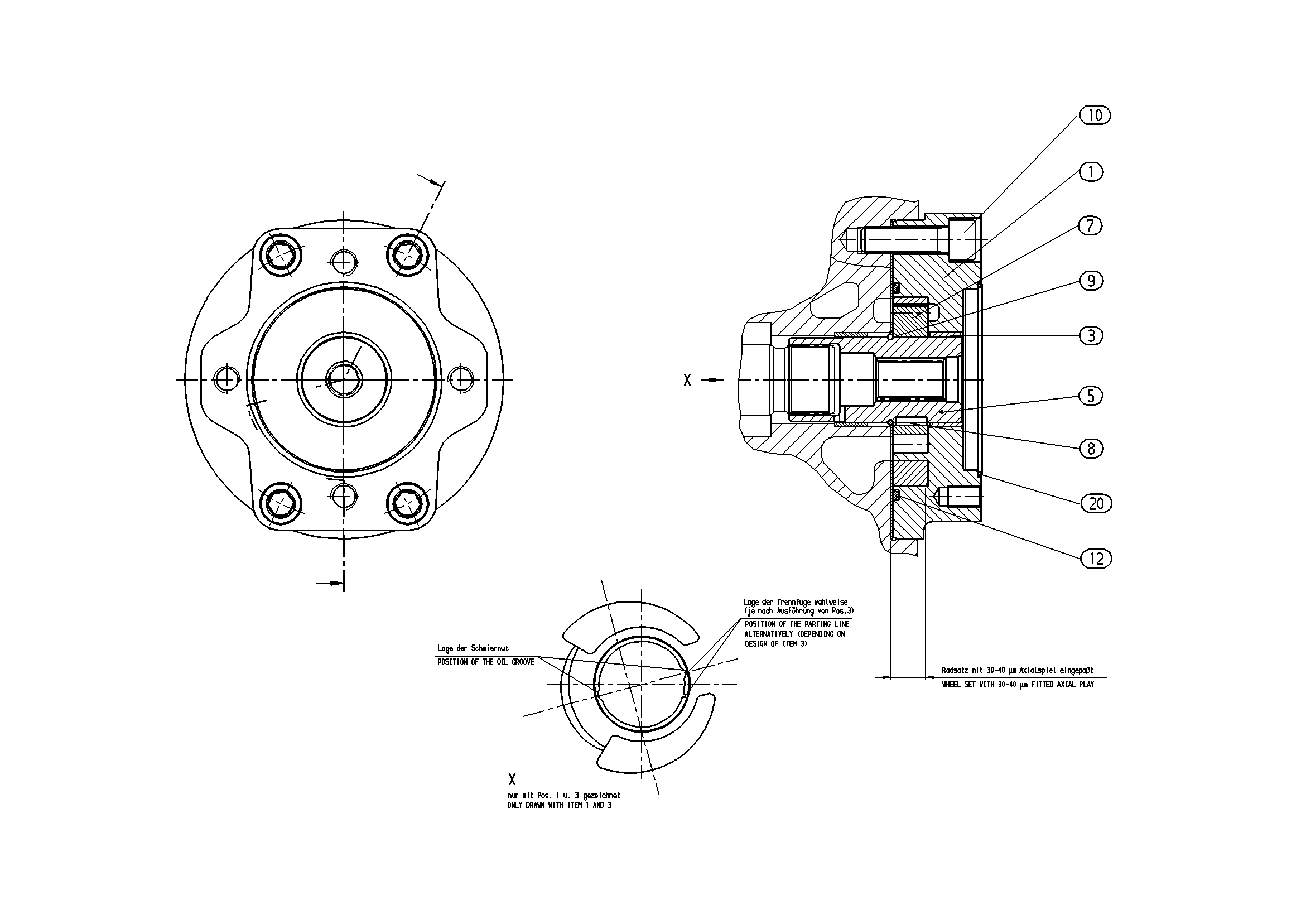

Assembly
INTERNAL GEAR PUMPR902077736
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902077793 | INTERMEDIATE FLANGE | 1 | ||
| R902260550 | BUSHING | 1 | ||
| 5 | R902070040 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006258 | WHEEL SET | 1 | |
| R902025649 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083091 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083825 | O-RINGD | 1 | ||
| 20 | R913044774 | O-RINGD | 1 |
