Assembly

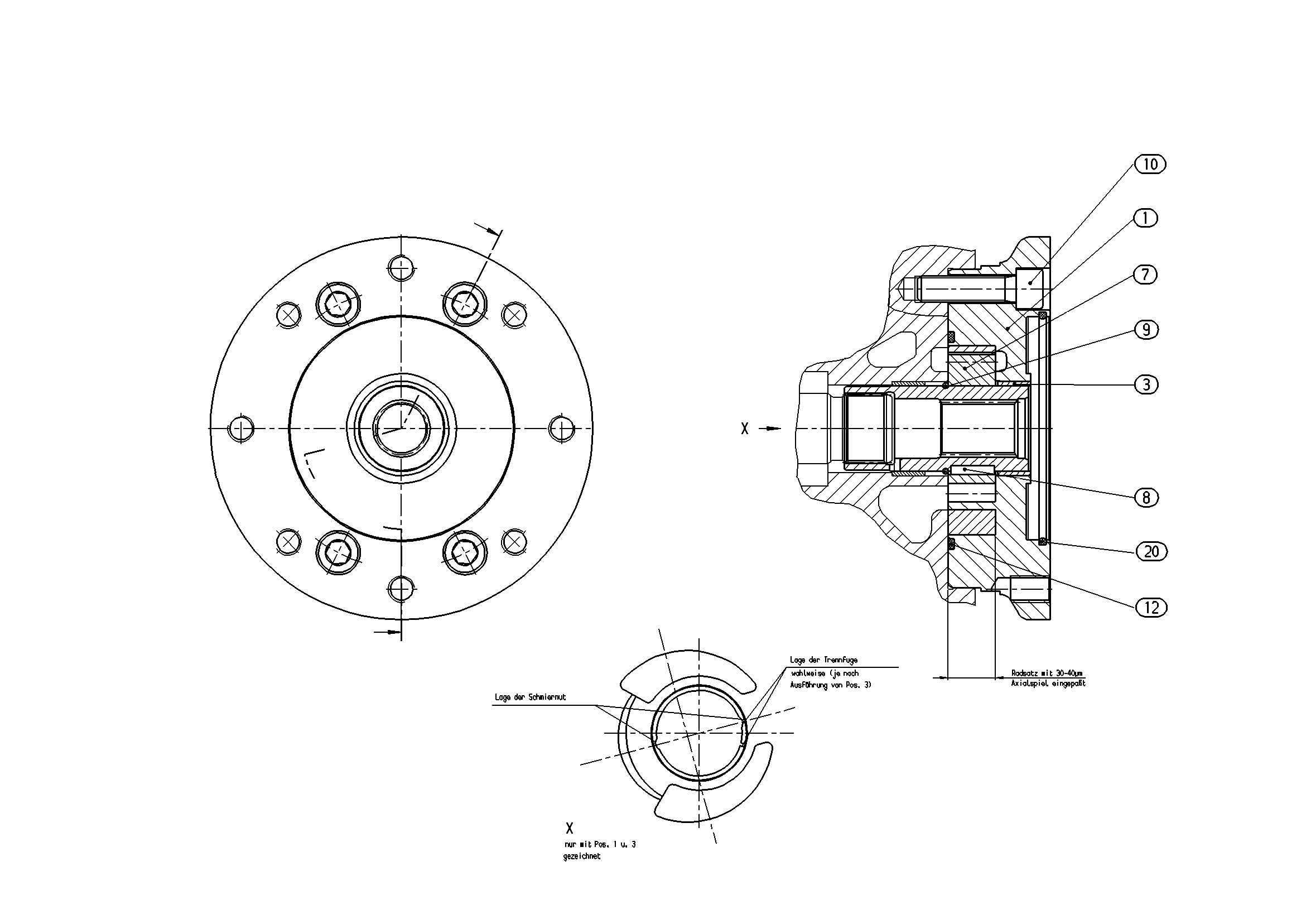

INTERNAL GEAR PUMPR902077744
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902077797 | INTERMEDIATE FLANGE | 1 | ||
| R902260550 | BUSHING | 1 | ||
| 5 | R902039556 | THROUGH DRIVE SHAFT | 1 | |
| R902006260 | WHEEL SET | 1 | ||
| R902244316 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083092 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083825 | O-RINGD | 1 | ||
| R913032365 | O-RINGD | 1 |
