Assembly

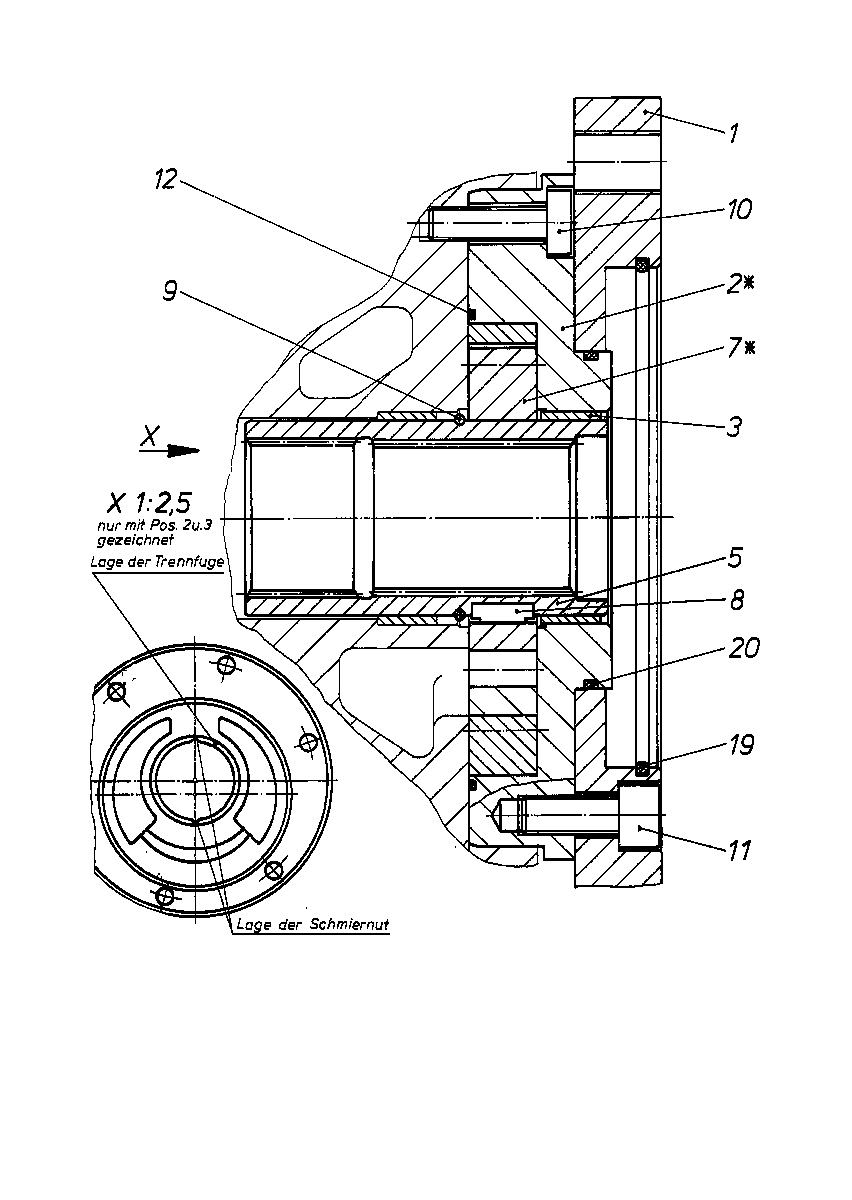

INTERNAL GEAR PUMPR902078055
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909431730 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R902071476 | PUMP COVER | 1 | |
| 3 | R902260553 | BUSHING | 1 | |
| 5 | R902120168 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006264 | WHEEL SET | 1 | |
| 8 | R902120355 | PARALLEL KEY | 1 | |
| 9 | R909154019 | SNAP RING | 1 | |
| 10 | R909831914 | SOCKET HEAD CAP SCREW | 6 | |
| 11 | R909084748 | SOCKET HEAD CAP SCREW | 4 | |
| 12 | R909157881 | O-RINGD | 1 | |
| 19 | R913002054 | O-RINGD | 1 | |
| 20 | R909083790 | O-RINGD | 1 |
