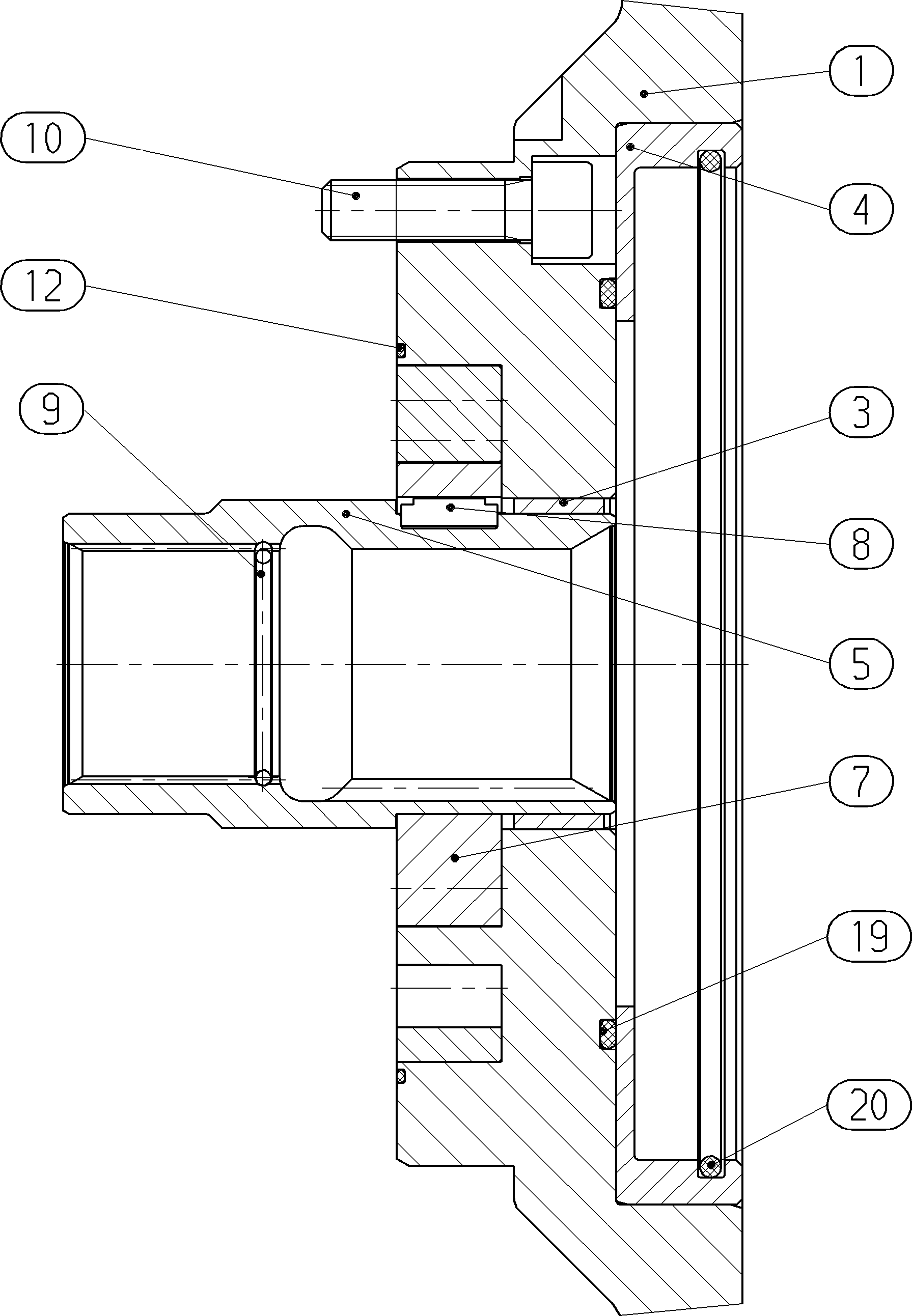

Assembly
INTERNAL GEAR PUMPR902078088
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902071484 | INTERMEDIATE FLANGE | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R909435938 | INTERMEDIATE RING | 1 | ||
| R902099507 | THROUGH DRIVE SHAFT | 1 | ||
| R902006265 | WHEEL SET | 1 | ||
| R902099662 | PARALLEL KEY | 1 | ||
| R909830236 | SNAP RING | 1 | ||
| R909083063 | SOCKET HEAD CAP SCREW | 6 | ||
| R909157881 | O-RINGD | 1 | ||
| R902278001 | BURL SEAL RINGD | 1 | ||
| R909086482 | O-RINGD | 1 |
