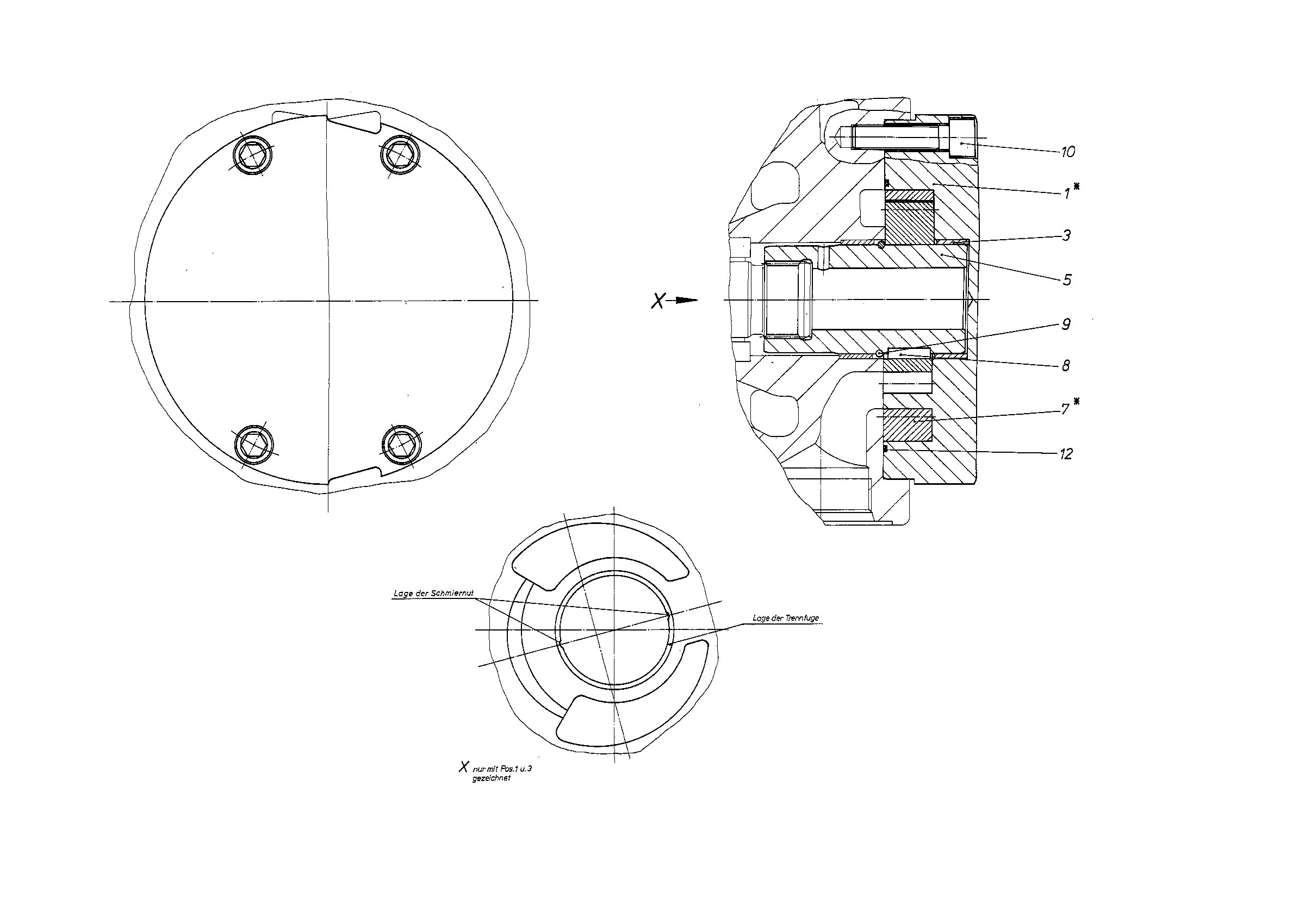

Assembly
INTERNAL GEAR PUMPR902078114
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902071498 | PUMP COVER | 1 | |
| 3 | R902260553 | BUSHING | 1 | |
| 5 | R909921853 | PLUG-IN SHAFT | 1 | |
| 7 | R902006263 | WHEEL SET | 1 | |
| 8 | R902252445 | PARALLEL KEY | 1 | |
| 9 | R909154019 | SNAP RING | 1 | |
| R909086611 | SOCKET HEAD CAP SCREW | 4 | ||
| R913026809 | KANTSEALD | 1 |
