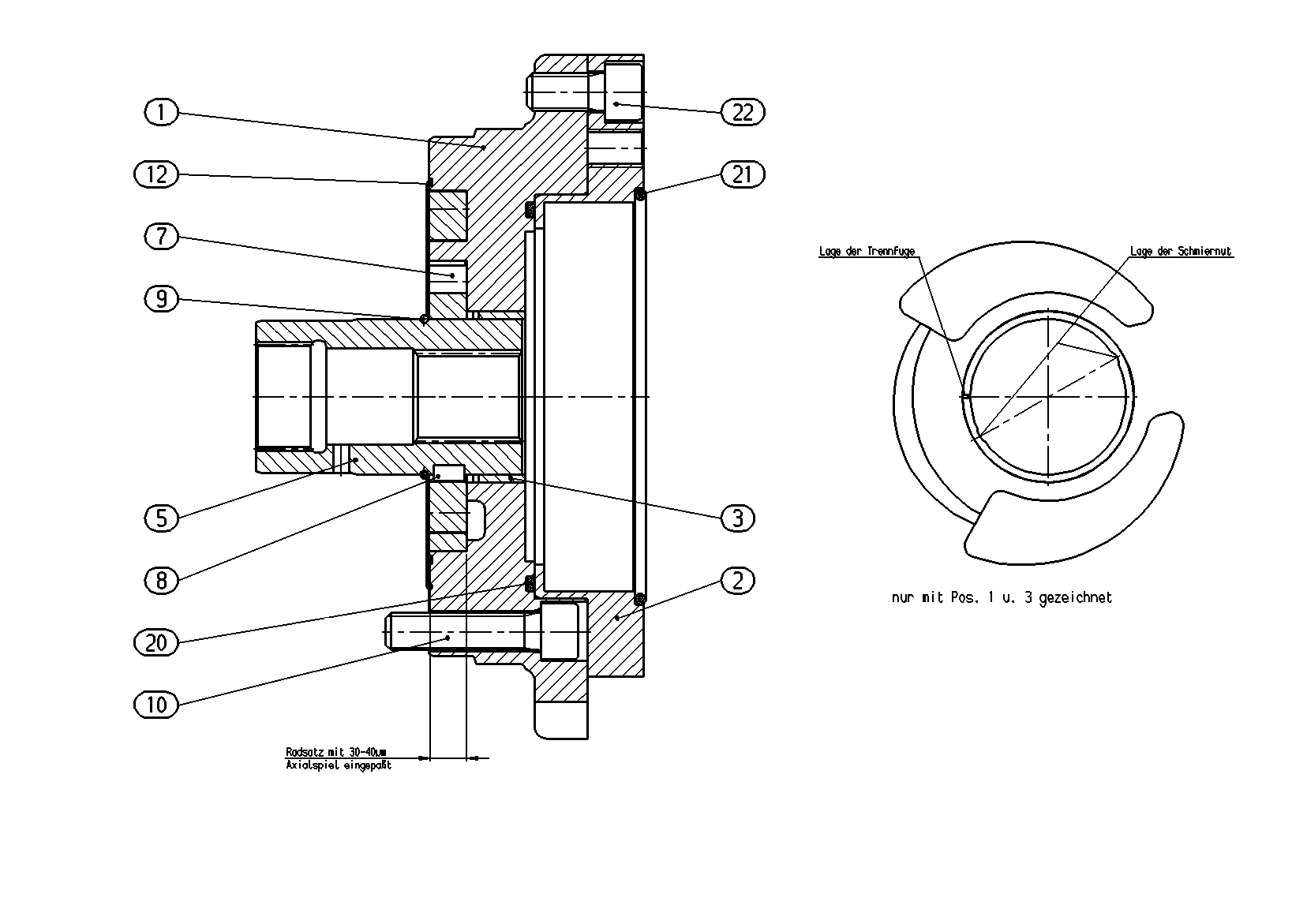

Assembly
INTERNAL GEAR PUMPR902078122
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902078003 | INTERMEDIATE FLANGE | 1 | |
| R909444144 | INTERMEDIATE FLANGE | 1 | ||
| R902260553 | BUSHING | 1 | ||
| 5 | R902104667 | THROUGH DRIVE SHAFT | 1 | |
| R902006261 | WHEEL SET | 1 | ||
| R902105557 | PARALLEL KEY | 1 | ||
| 9 | R909154019 | SNAP RING | 1 | |
| 10 | R909083094 | SOCKET HEAD CAP SCREW | 4 | |
| R913026809 | KANTSEALD | 1 | ||
| R909152647 | O-RINGD | 1 | ||
| R913045131 | O-RINGD | 1 | ||
| 22 | R909086574 | SOCKET HEAD CAP SCREW | 4 |
