Assembly

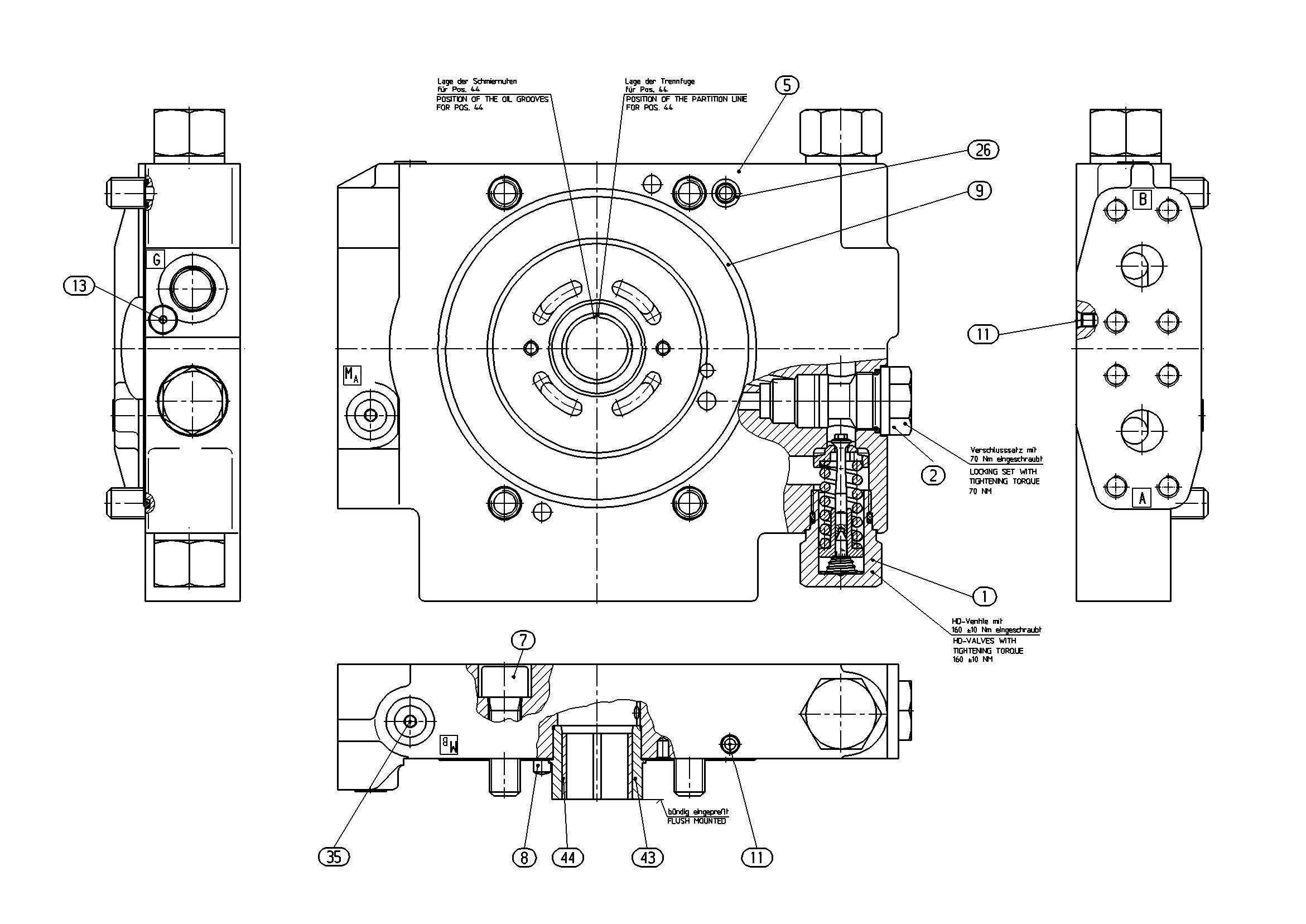

CONNECTION PLATER902078185
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016386 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909438962 | LOCKING SET | 1 | ||
| R902078183 | CONNECTION PLATE | 1 | ||
| R909156851 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084173 | STRAIGHT PIN | 2 | ||
| R909830424 | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUG | 2 | ||
| R902001050 | BUSHING | 1 | ||
| R902260549 | BUSHING | 1 | ||
| 49 | — | O-RING | 1 |
