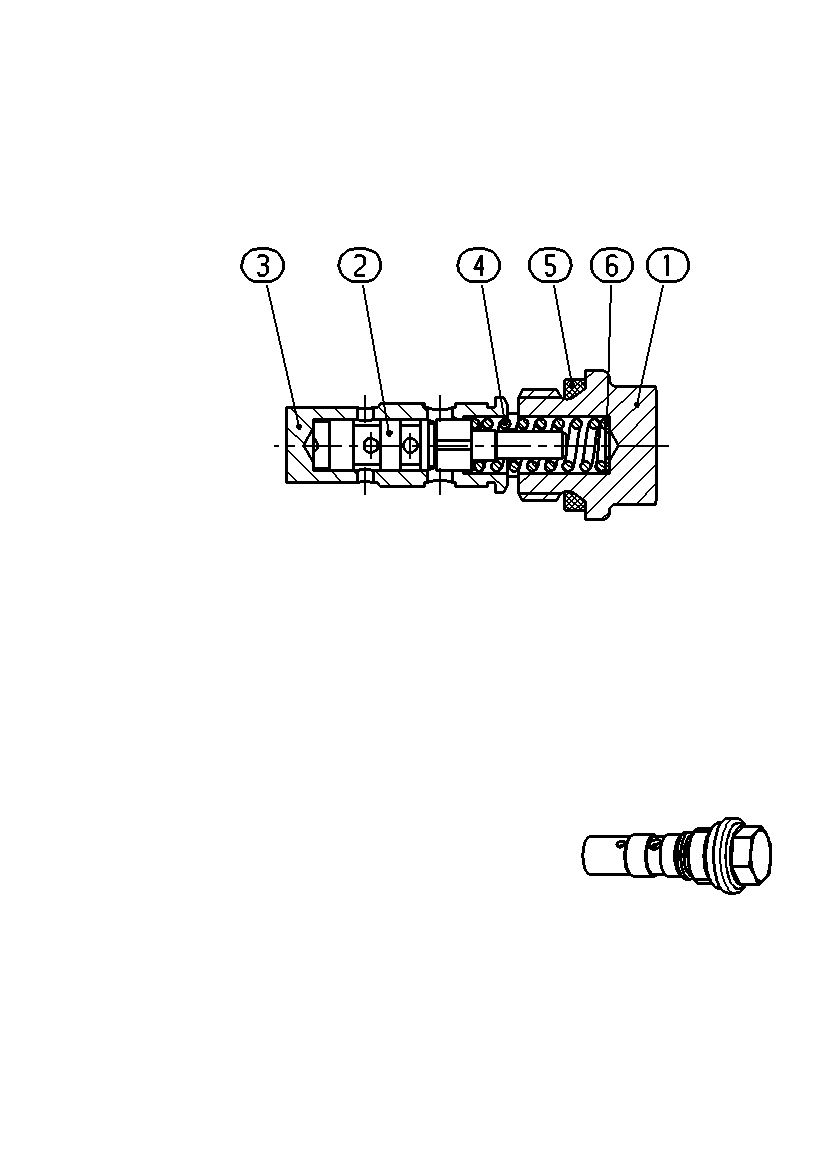

Assembly
BRAKE RELEASE VALVER902078219
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909651756 | SCREW PLUG | 1 | |
| 2 | R902078217 | CONTROL PISTON | 1 | |
| 3 | R909651619 | CONTROL SLEEVE | 1 | |
| R909650339 | COMPRESSION SPRING | 1 | ||
| 5 | R909086765 | O-RINGD | 1 | |
| 6 | R902190925 | WASHER | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909651756 | SCREW PLUG | 1 | |
| 2 | R902078217 | CONTROL PISTON | 1 | |
| 3 | R909651619 | CONTROL SLEEVE | 1 | |
| R909650339 | COMPRESSION SPRING | 1 | ||
| 5 | R909086765 | O-RINGD | 1 | |
| 6 | R902190925 | WASHER | 1 |
