Assembly

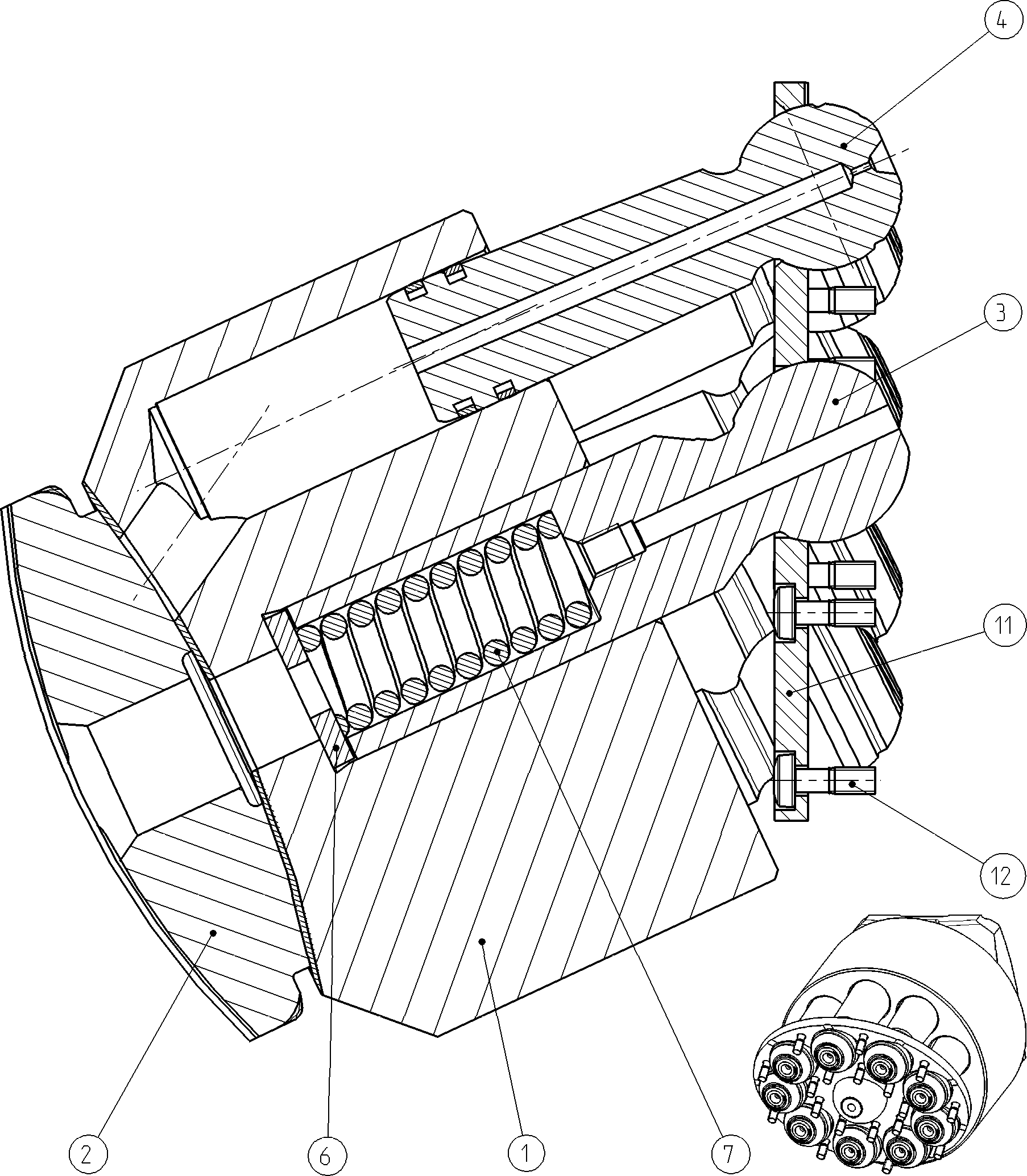

ROTARY GROUPR902078724
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902072581 | CYLINDER | 1 | ||
| R902072582 | CONTROL LENS | 1 | ||
| R909921524 | CENTER PIN | 1 | ||
| R902078723 | PISTON | 9 | ||
| R902078725 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902014283 | COMPRESSION SPRING | 1 | ||
| R902257043 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 18 |
