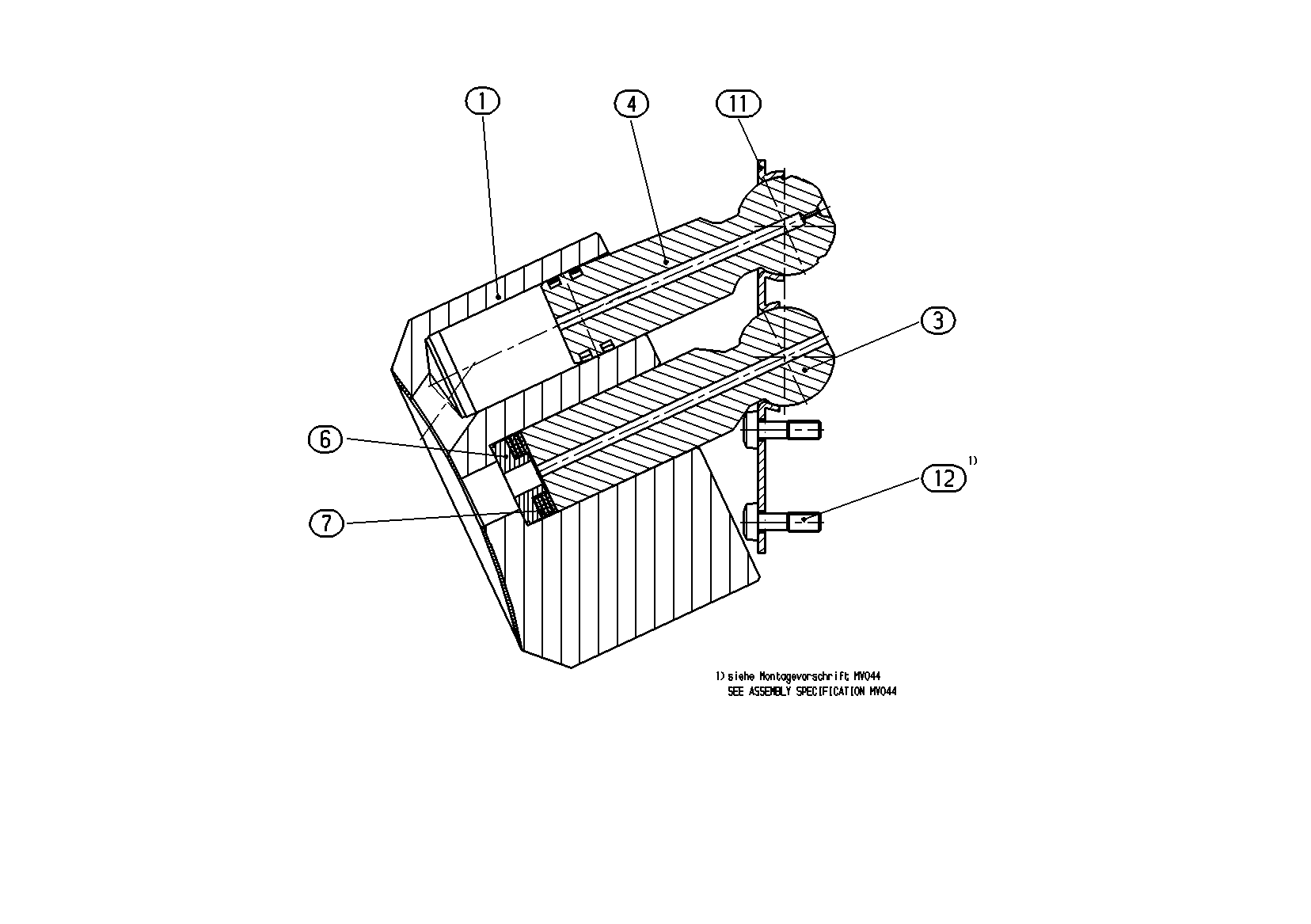

Assembly
ROTARY GROUPR902078804
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909436058 | CYLINDER | 1 | |
| R909410552 | CENTER PIN | 1 | ||
| 4 | R902021905 | PISTON | 7 | |
| R909414031 | SPRING DISK | 1 | ||
| R902043505 | SPRING DISK | 1 | ||
| R909414033 | SPRING DISK | 1 | ||
| R909414034 | SPRING DISK | 1 | ||
| R909414035 | SPRING DISK | 1 | ||
| R909414036 | SPRING DISK | 1 | ||
| R909414037 | SPRING DISK | 1 | ||
| R909432293 | SPRING DISK | 1 | ||
| R909432294 | SPRING DISK | 1 | ||
| 7 | R909410551 | DISC SPRING | 4 | |
| 11 | R902072553 | RETAINING PLATE | 1 | |
| R902602395 | PAN-HEAD SCREW | 14 |
