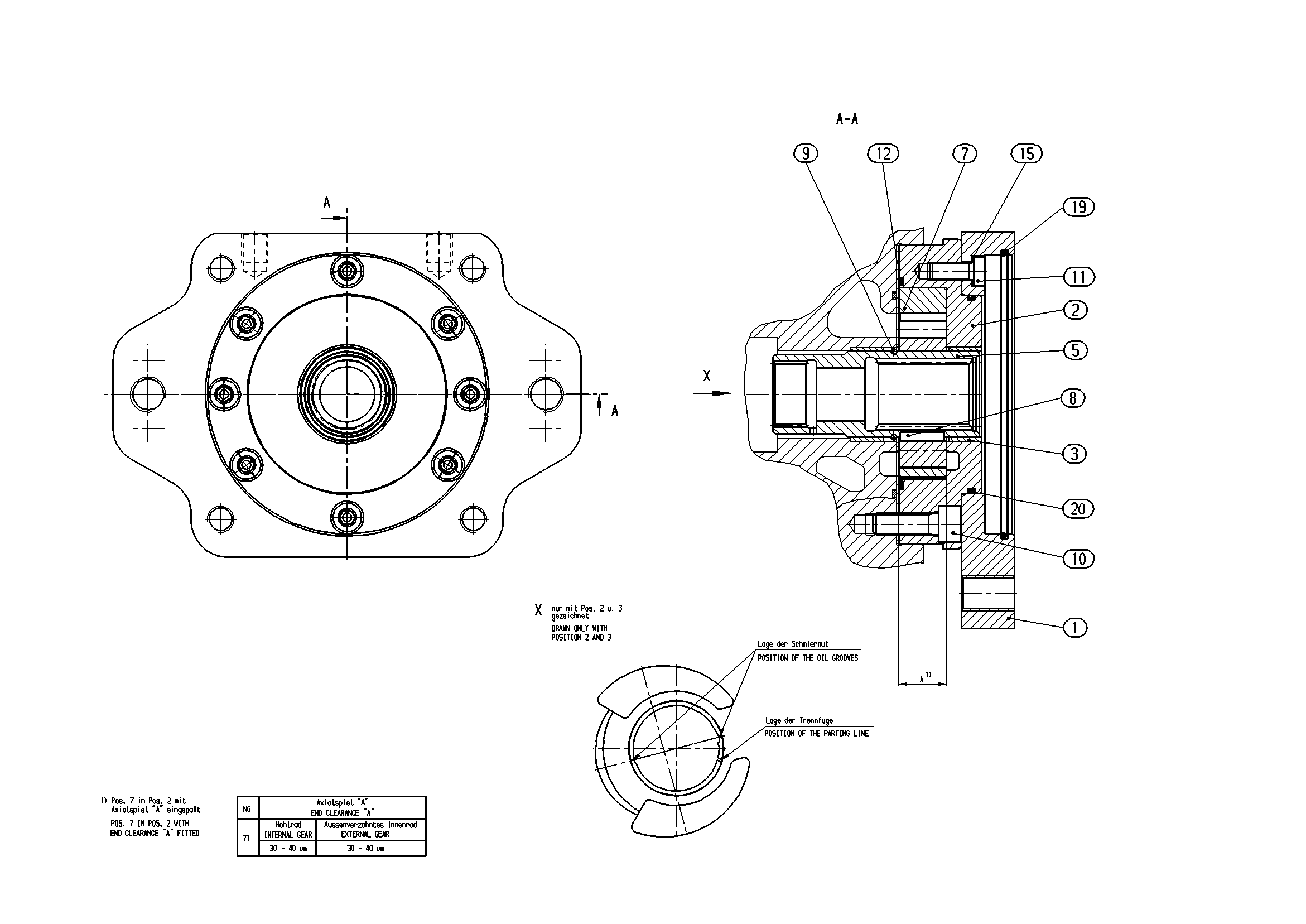

Assembly
INTERNAL GEAR PUMPR902079018
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902062128 | FLANGE | 1 | ||
| R902077947 | PUMP COVER | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R902062131 | THROUGH DRIVE SHAFT | 1 | ||
| R902006260 | WHEEL SET | 1 | ||
| R902244316 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083189 | SOCKET HEAD CAP SCREW | 8 | |
| R909086679 | O-RINGD | 1 | ||
| R909152493 | SEAL RINGD | 8 | ||
| R913002054 | O-RINGD | 1 | ||
| R909085360 | O-RINGD | 1 |
