Assembly

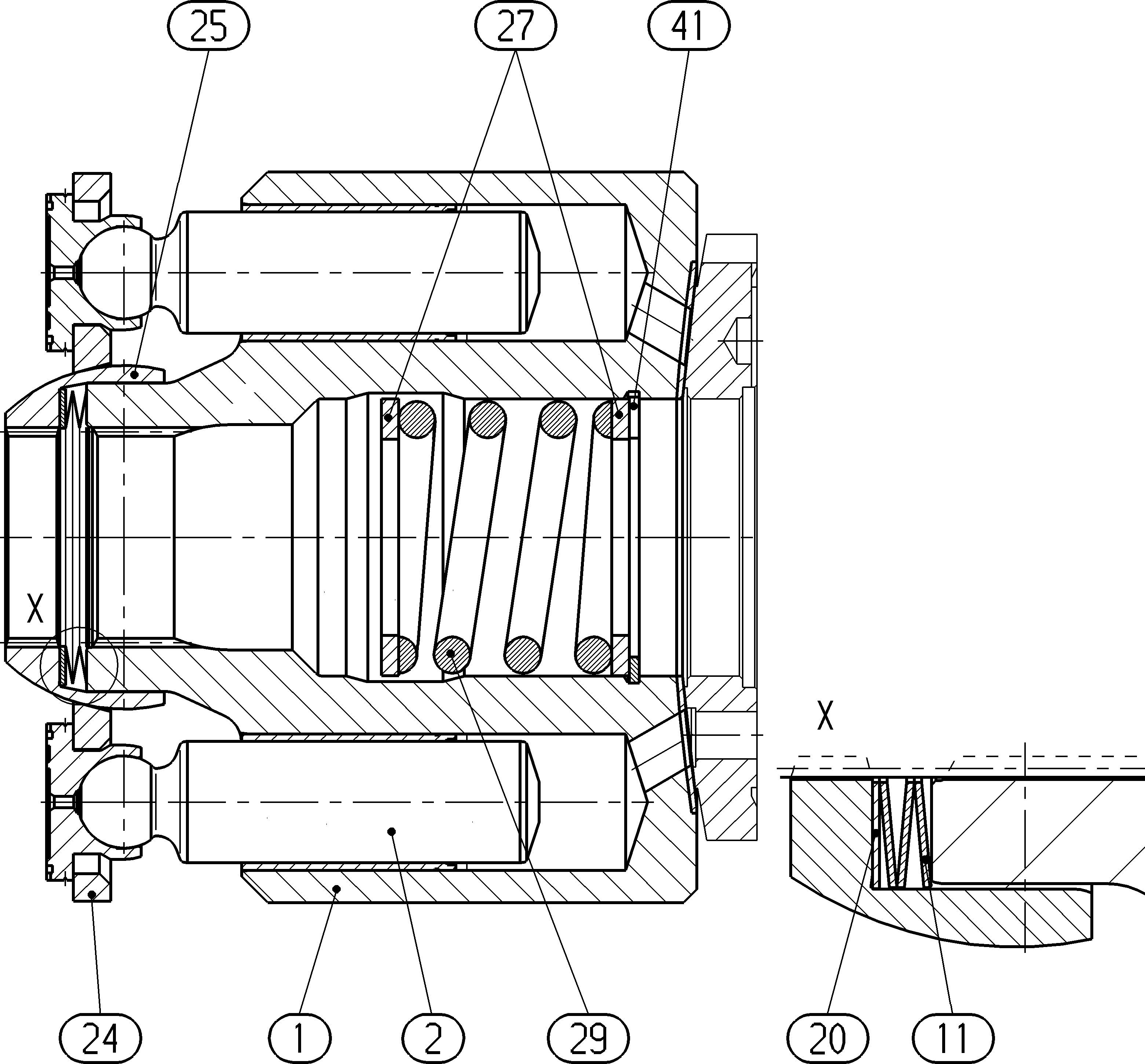

ROTARY GROUPR902079180
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902230973 | CYLINDER | 1 | |
| R902064146 | PISTON PAD | 9 | ||
| 11 | R902192958 | CUP-SPRING STACK | 1 | |
| R909432983 | SHIM RING | 1 | ||
| R909432984 | SHIM RING | 1 | ||
| R909432985 | SHIM RING | 1 | ||
| R909432986 | SHIM RING | 1 | ||
| R902205452 | RETAINING PLATE | 1 | ||
| R902214312 | RETAINING BALL | 1 | ||
| R909449885 | WASHER | 2 | ||
| R909435649 | COMPRESSION SPRING | 1 | ||
| 41 | R909084556 | RETAINING RING | 1 |
