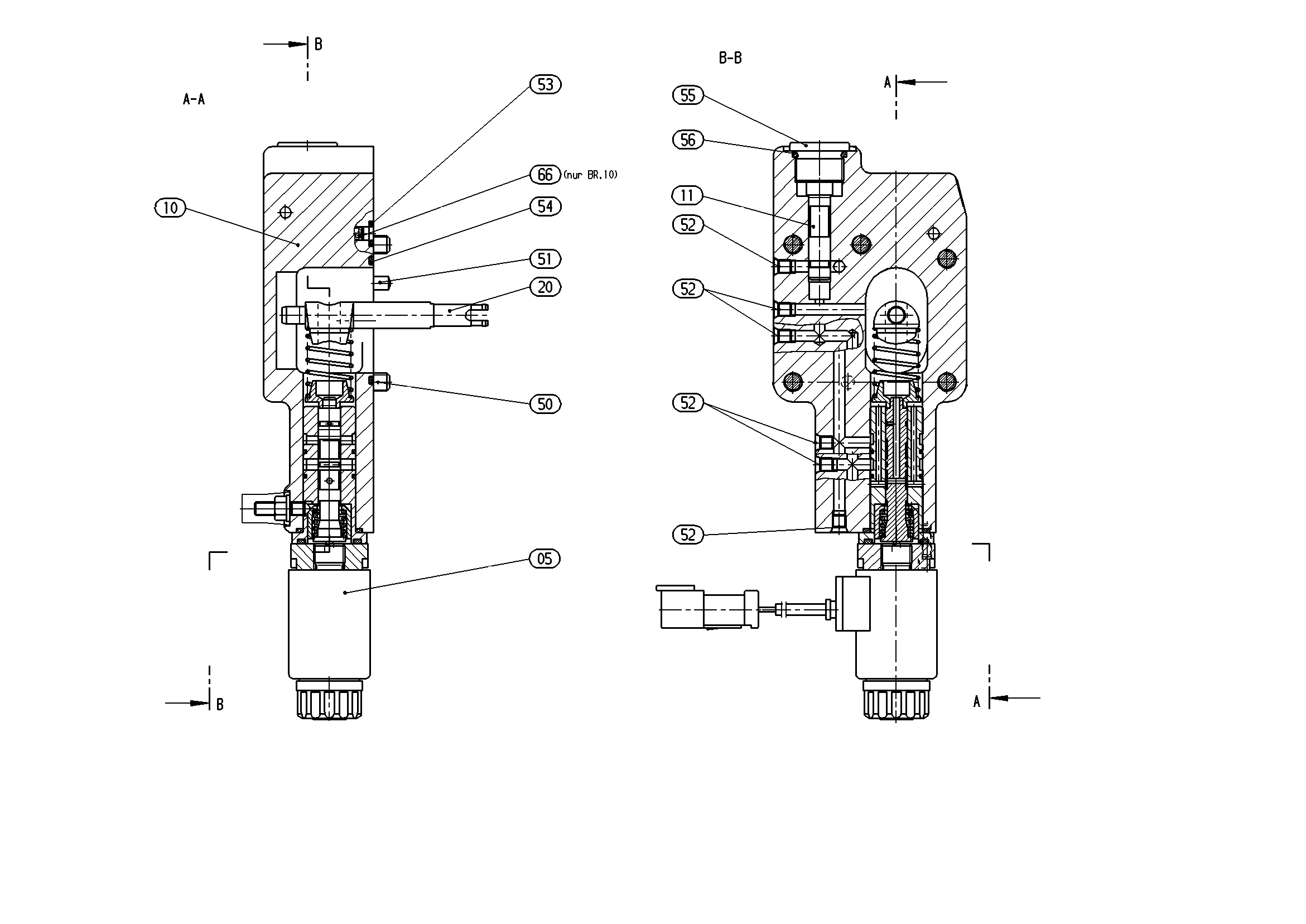

Assembly
REGULATORR902079251
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 5 | R902071502 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R902025235 | CONTROL HOUSING | 1 | ||
| R909449599 | BOLT | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RING | 1 | ||
| 58 | R909153338 | SCREW PLUG | 1 | |
| 98 | R902002479 | SEAL KIT | 1 |
