Assembly

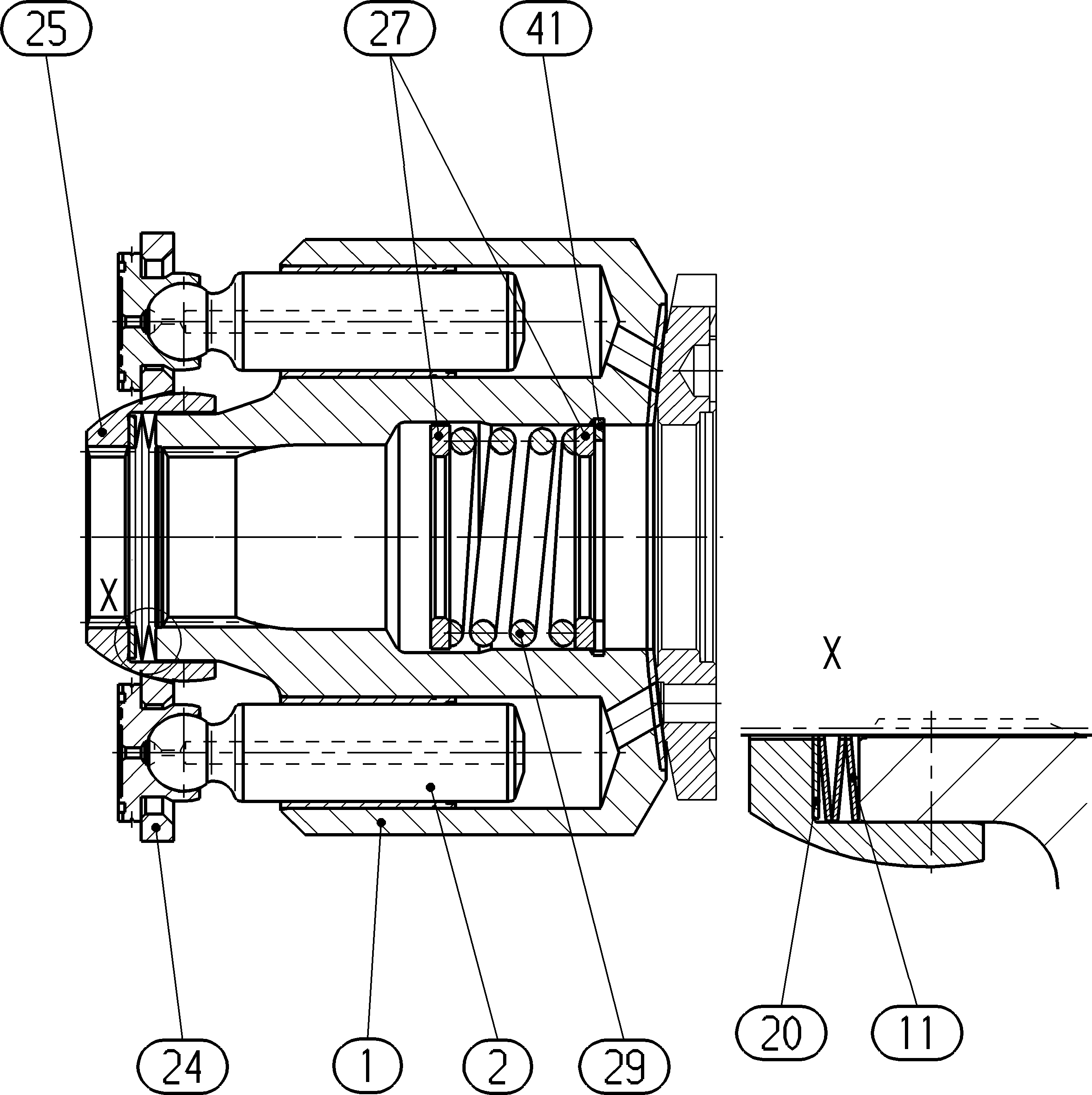

ROTARY GROUPR902079297
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902037406 | CYLINDER | 1 | ||
| R909435304 | PISTON PAD | 9 | ||
| R902121235 | CUP-SPRING STACK | 1 | ||
| R909432098 | SHIM RING | 1 | ||
| R909432099 | SHIM RING | 1 | ||
| R909432100 | SHIM RING | 1 | ||
| R909432101 | SHIM RING | 1 | ||
| R902205450 | RETAINING PLATE | 1 | ||
| R909432260 | RETAINING BALL | 1 | ||
| R909449756 | WASHER | 2 | ||
| R909449750 | COMPRESSION SPRING | 1 | ||
| R909083397 | RETAINING RING | 1 |
